Carbon Fiber Aerotor Aero Disc Brake Rotors | Centerlock & 6-Bolts | 140 & 160mm

Aerotor - rotors,
made aero with a carbon fiber spider!

The large surface area enhances the sailing effect on the wheel, minimising drag at larger yaw angles.

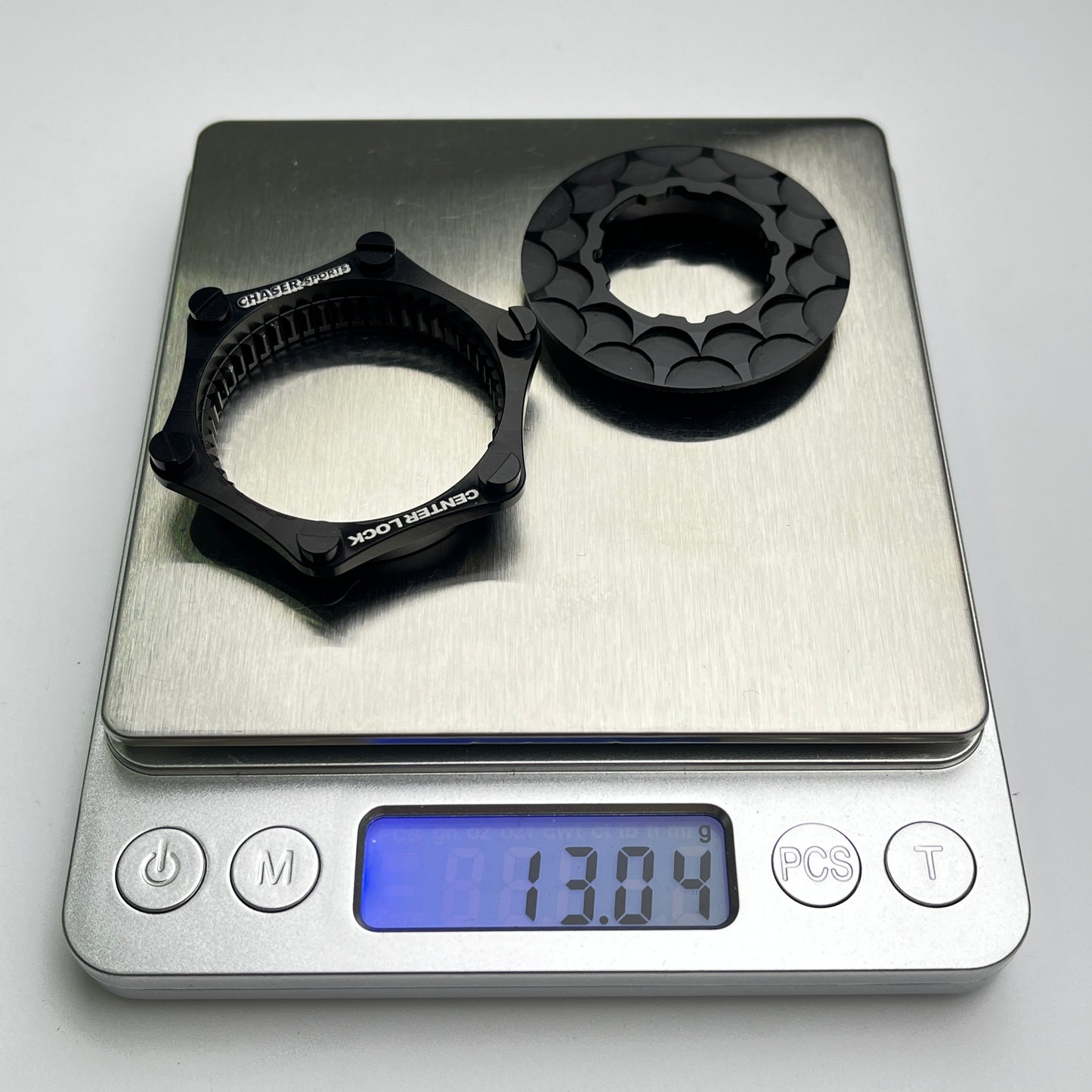

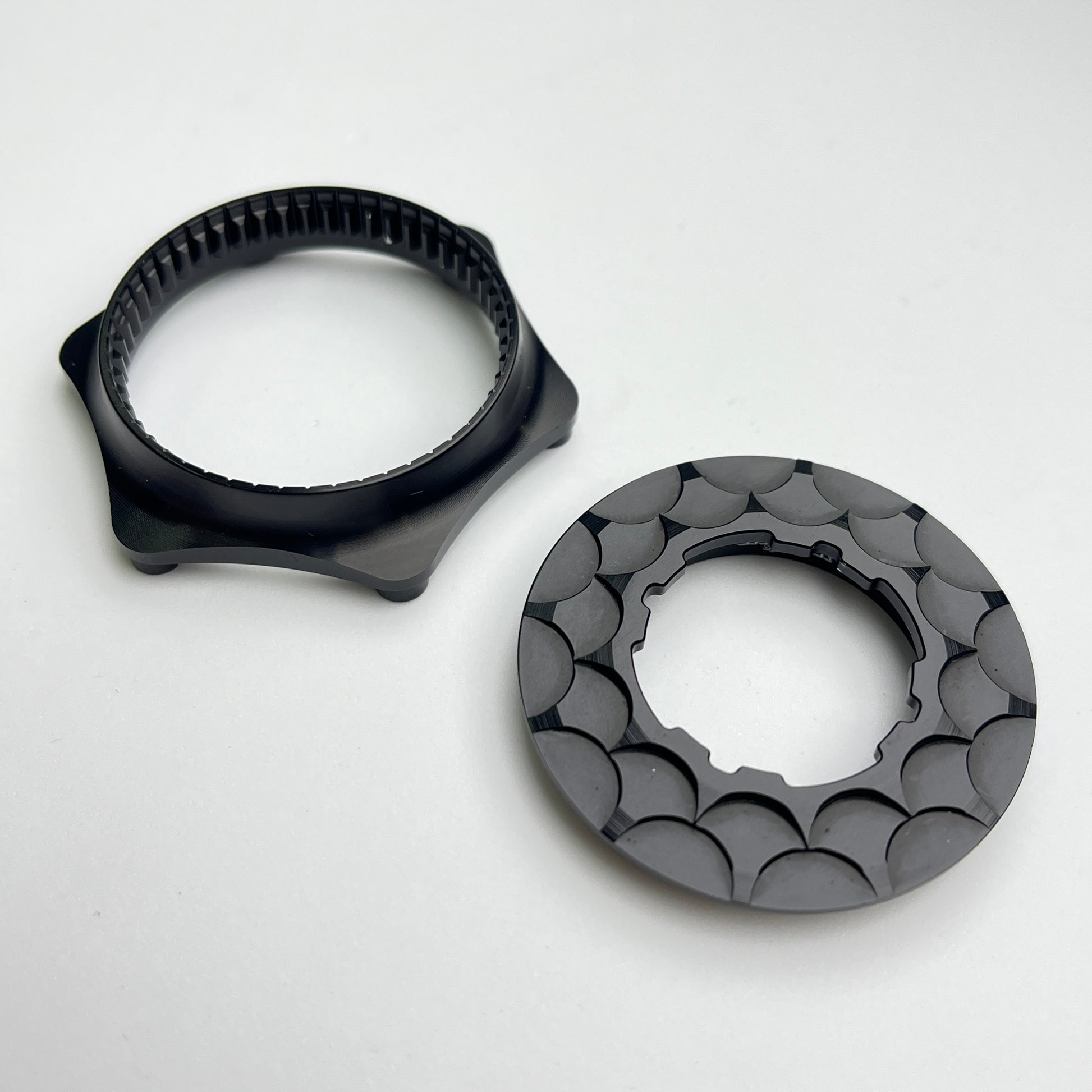

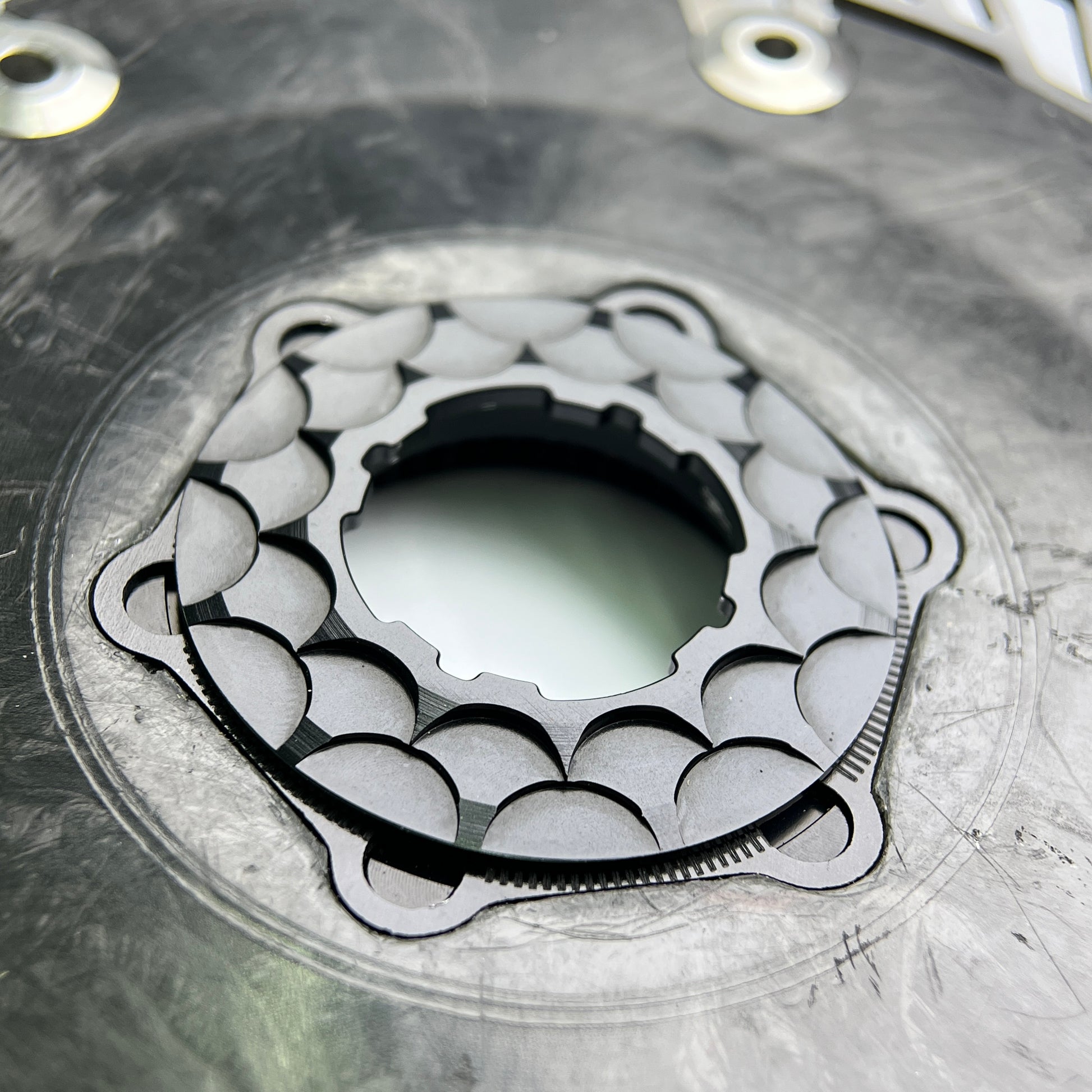

Rotor Lock Ring (Inner Spline) and 6-bolt adapter included

--------------------------------
Compatibility

Both Centerlock & 6-Bolt Rotor Hubs

Road bike disc brakes (160mm and 140mm rotors)

--------------------------------
Specifications

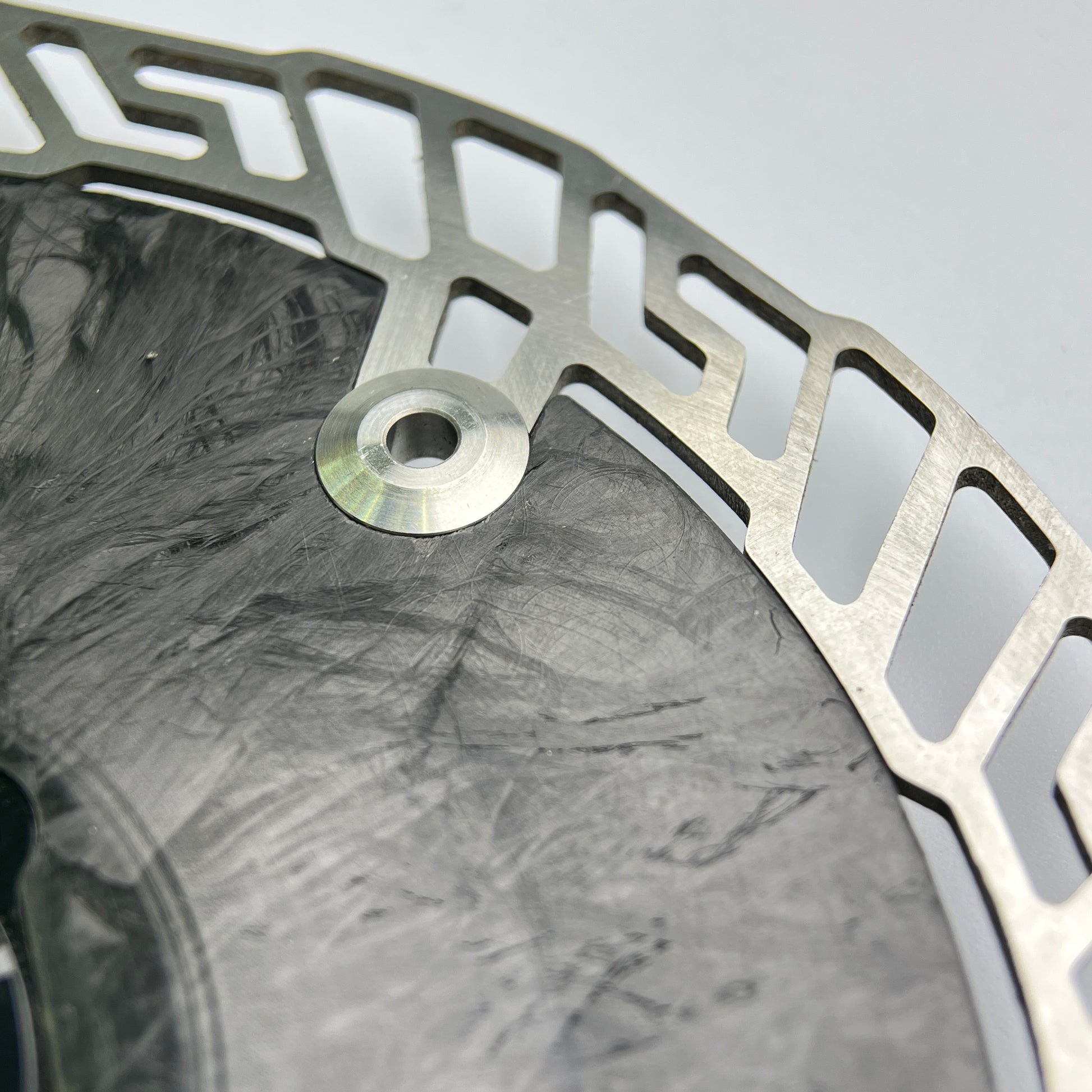

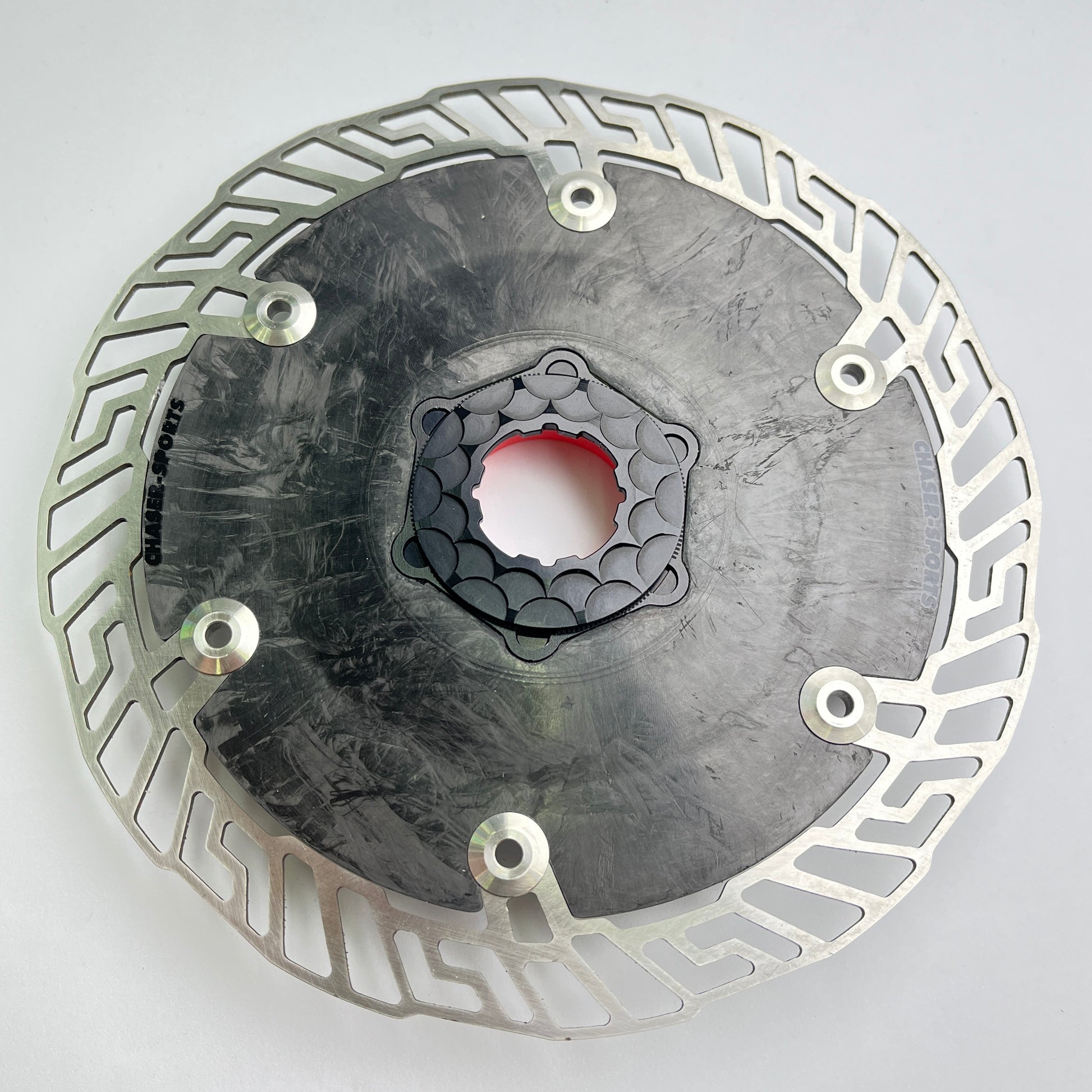

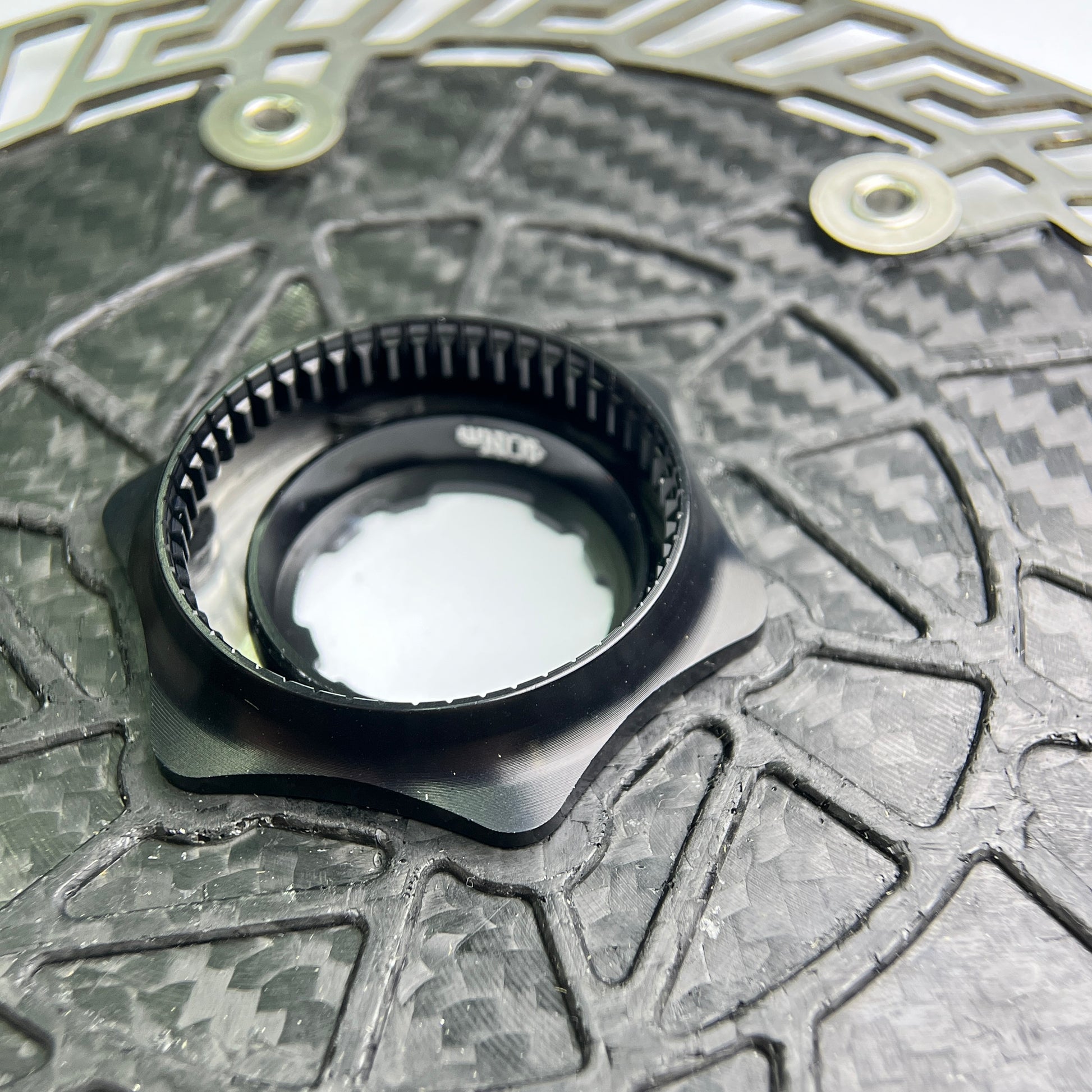

- Forged carbon fiber aero spider

- SUS420 steel disc and rivets to ensure heat management for long and consistent braking

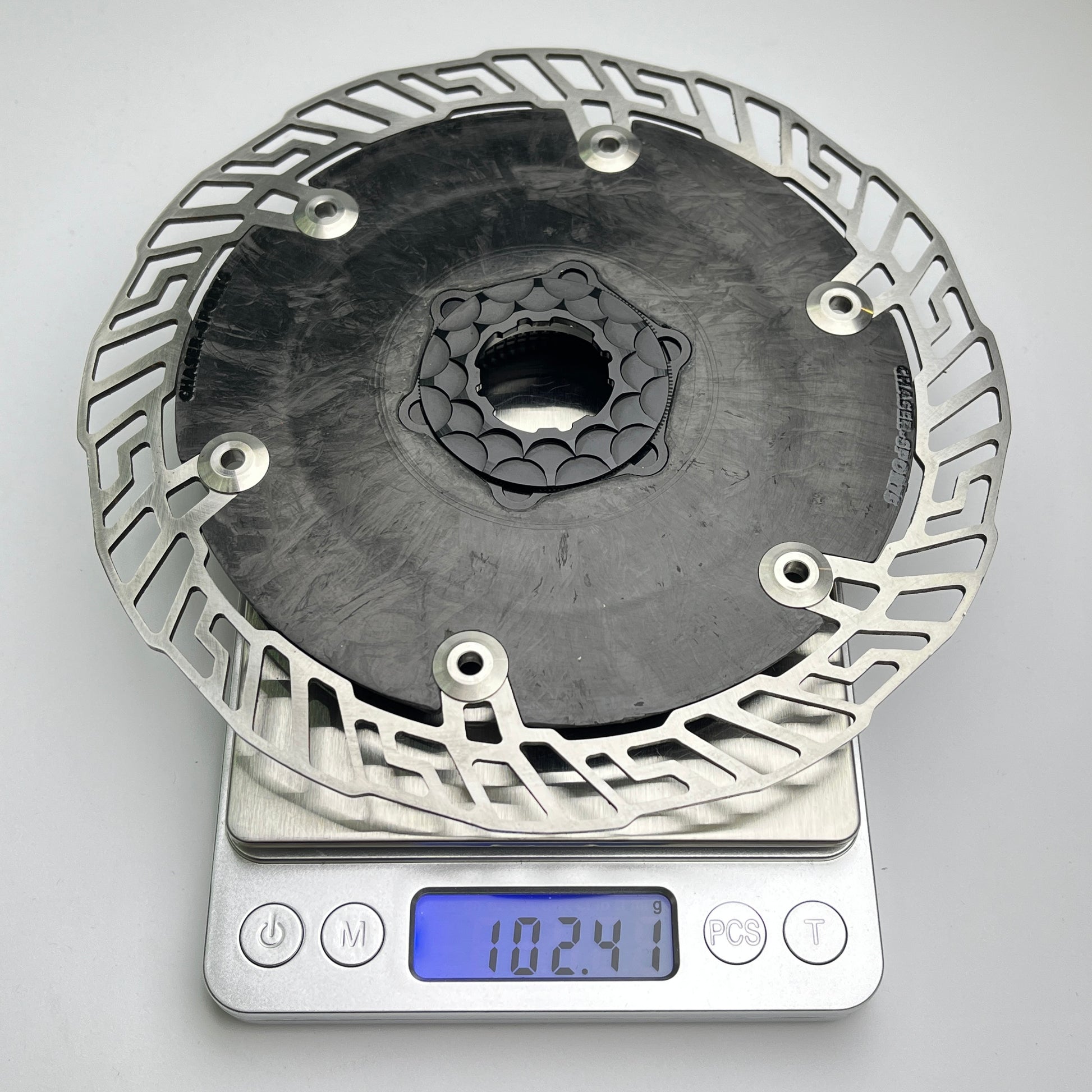

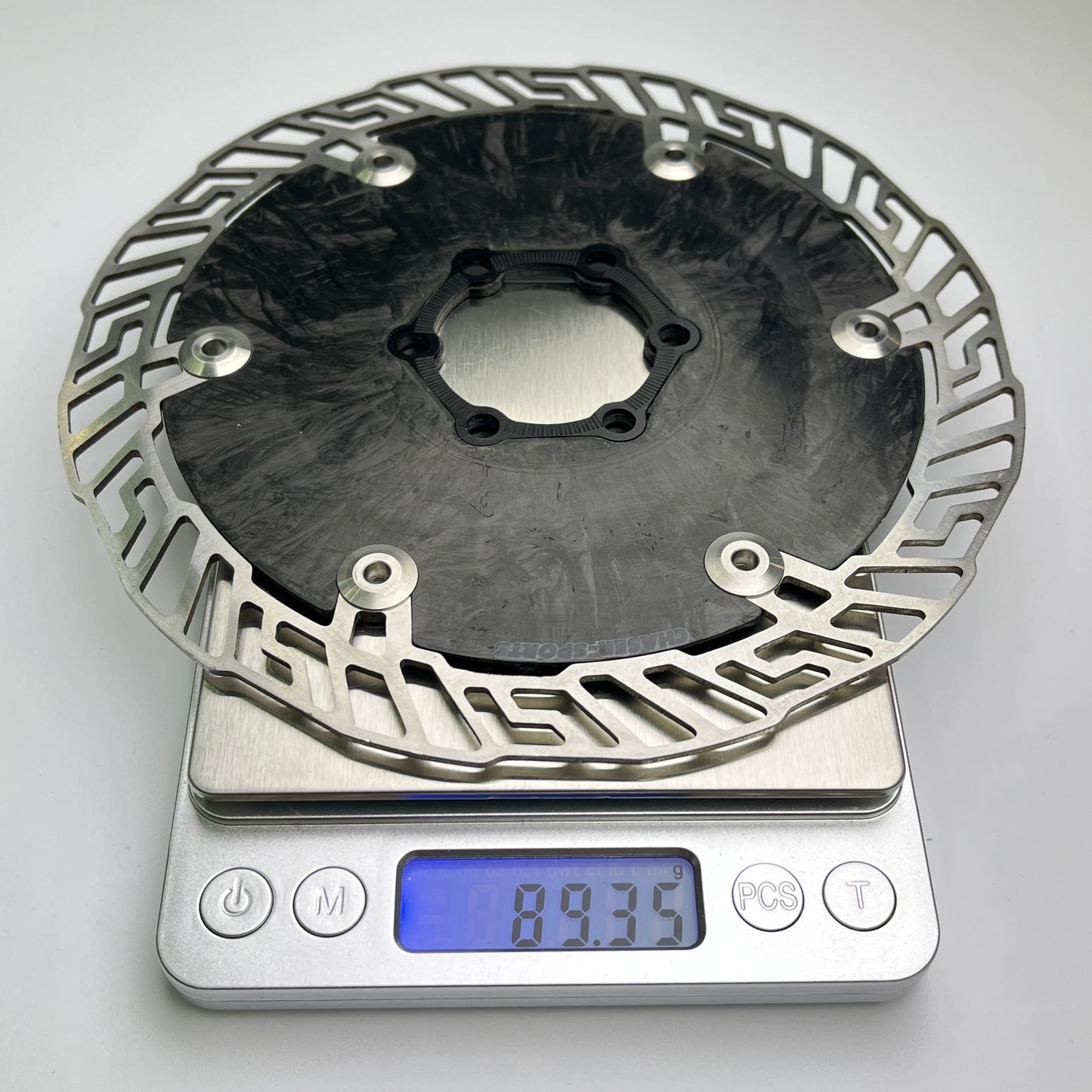

Weight:

With Centerlock-6-Bolt Adapter | Without Adapter:
160mm - 105.6g | 91.52g/pc (Shimano XTR MT900: 108g)
140mm - 90.12g | 77.27g/pc (Shimano XTR MT900: 88g)

Thickness - 1.6mm

System weight limit (Rider + Bike): 120kg

--------------------------------
Testing Standards

ISO 4210:2015
EN 14781:2005
GB 3565-2005

---------------------------
FAQ

I can't tighten the lock ring much by hand. Is something wrong?

Firstly, ensure the lock ring is inserted correctly and not cross-threaded. If the lock ring is inserted properly, then yes, it may feel harder to turn compared to the stock part. This is normal. Please use the cassette tool to tighten to 25Nm. After this, the lockring will be easier to tighten/loosen by hand should you remove it in the future.

--------------------------------
Links

For Aluminium Aero Rotors: Click Here!

----------------------------
Disclaimer

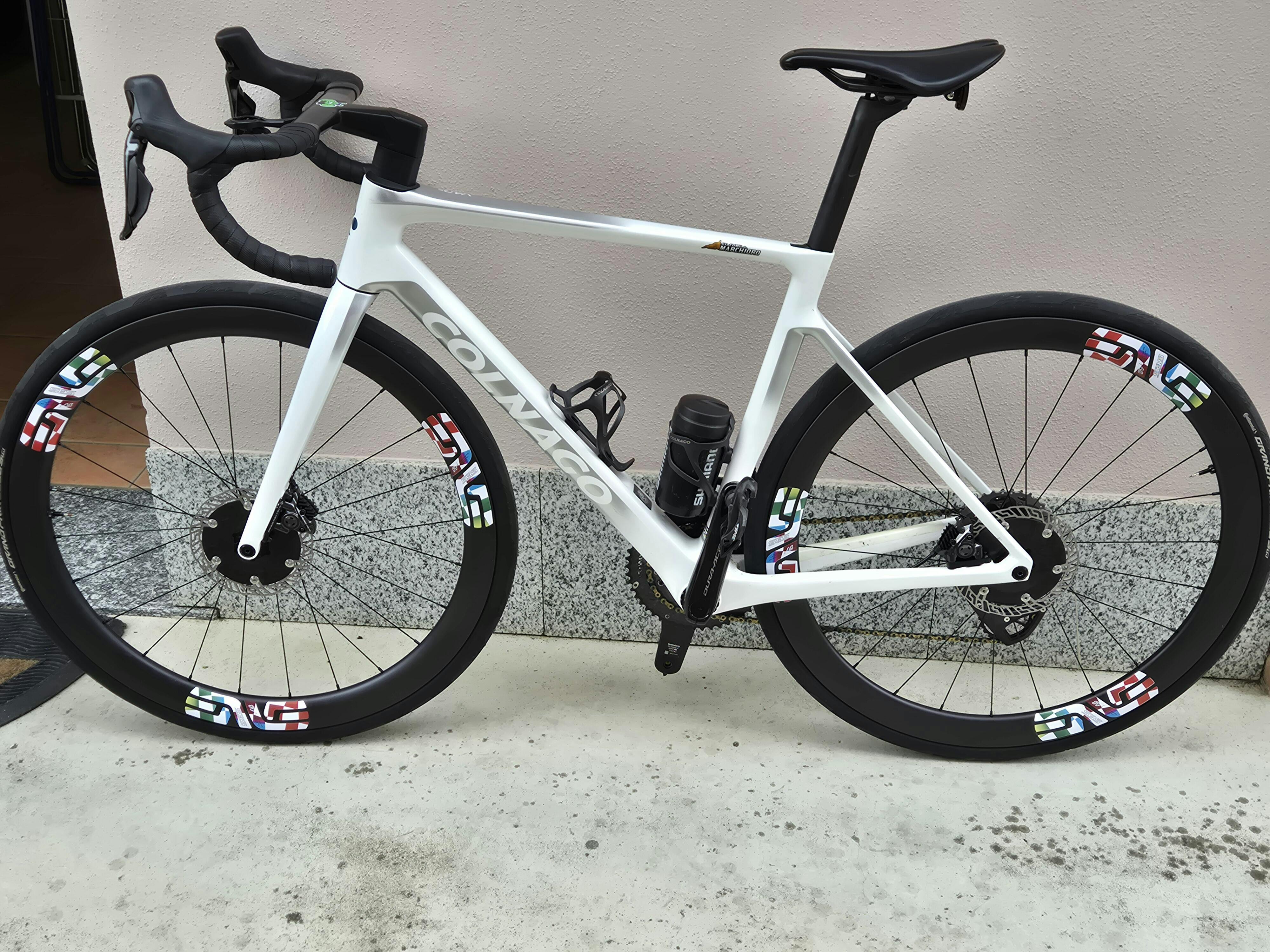

Bicycle and other components in the pictures are not included.
Different batch surface finishing may different
