Laget

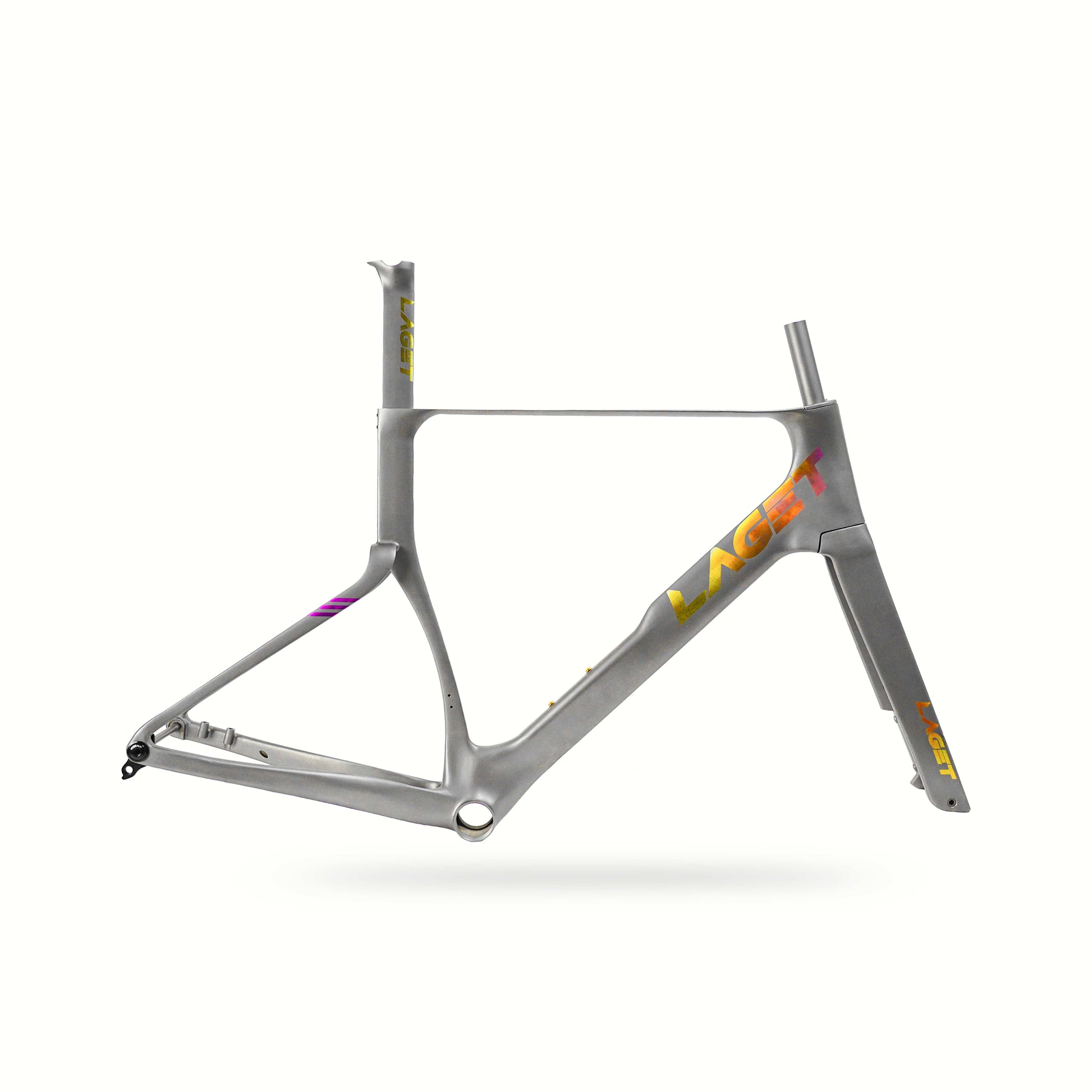

Laget Aero One Titanium Road Frameset | 3D-Printed Titanium | 1630g (M) | 700x30c

$11,000.00 SGD

Sale Sold out

Shipping calculated at checkout.

Frame Size XS S M L XL

LAGET is a German-registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide.

All frames are designed by German designers and crafted in Xi'an, China.

The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium.

Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and corrosion resistance, like an old friend who stays with you all the time.

TSB made history as the world's first company to bring titanium 3D printing to civilian bicycle frames, debuting the technology at both Taipei Cycle Show and Eurobike in 2023.

1. Frame

Fully 3D-Printed titanium alloy unibody structure combines strength and lightweight design, specifically tailored for aero and high-speed racing

2. Head Tube

Fully 3D-printed integrated streamlined head tube that significantly reduces wind resistance, whilst providing precise and stable handling.

3. Seat Tube

Race-oriented geometry optimisation that improves pedalling efficiency while balancing long-distance comfort.

4. Dropouts

Equipped with Universal Derailleur Hanger (UDH) system, which allows for flexible and easy-to-source derailleur hangers.

Compatible with mainstream wireless electronic shifting.

5. Bottom Bracket

3D-printed T47 bottom bracket structure allows for a stable and efficient transfer of power. T47 is also less prone to having abnormal squeaks/noise.

6. Chainstay

Fully 3D-printed titanium alloy, to balance the forces between shock absorption and durability

Frameset Specifications

Material: Fully 3D-Printed Titanium
Sizes: XS, S, M, L, XL
Weight: 1,630g (Size M)
Surface: Sandblasted Surface - Anodized Logo
Gear Compatibility: Wireless Electronic Shifting
Maximum Tyre Capacity: 700x30c
Headset: 52/52mm Internal Embedded Bearings
Front Fork Material: Titanium Alloy
Bottom Bracket: T47x68mm
Thru Axle: 100x12mm (Front)/142x12mm (Rear)
Thru-Axle Spec: Front: 123mm P1.5 | Rear: 172mm P1.0
Dropout: Universal Derailleur Hanger

What's Included

Bicycle Frame
Titanium Fork
FSA 52mm headset bearing with 2.5cm black spacer
Front and Rear thru-axles (Aluminium Alloy)
Universal Rear Derailleur Hanger (Aluminium Alloy)

Shipping

✔ Complimentary standard worldwide shipping
✔ Framesets are shipped separately from other items.
✔ Optional express upgrade available at checkout

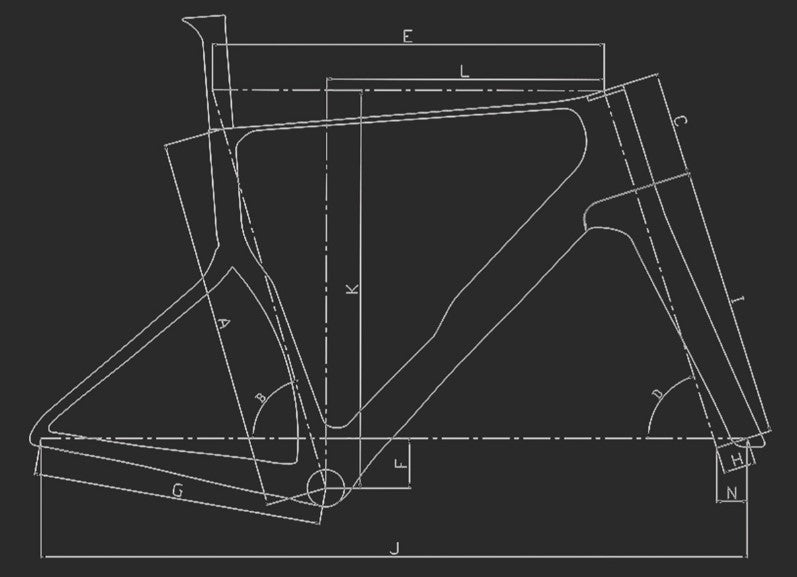

Geometry

Size Selection based on Rider Height

Height (CM)	158-164	164-172	172-179	179-188	188-197
Frame Size	XS	S	M	L	XL

Please note the size recommendations above are for reference only and apply to most common situations, but not every person's unique morphology.

Dimension	XS	S	M	L	XL
A: Seat Tube Length	465	495	525	550	585
B: Seat Tube Angle	75.1°	74.2°	73.6°	73.2°	72.8°
C: Head Tube Length	120	140	160	180	200
D: Head Tube Angle	71.8°	72.1°	72.5°	72.8°	72.9°
E: Effective Top Tube Length	502.4	530.3	554.2	577.2	603.6
F: BB Drop	75	72	70	68	68
G: Chainstay Length	405	405	405	405	405
H: Front Fork Offset	50	48	45	43	43
I: Front Fork Length	367	367	367	367	367
J: Wheelbase	961	977.6	989.9	1004.8	1025.8
K: Stack Height	520.2	538.1	557.9	576.9	596.3
L: Reach	364	378	390	403	419
Standover Height	744.1	769.5	795.1	818.1	843.9
Fork Trail	59.8	60.1	60.7	60.8	60.2

Dimensions in mm unless otherwise stated.

Links

Explore other frames from Laget, such as the Pioneer One, Pioneer or Gravel Framesets Here

Warranty

Laget provides a lifetime warranty for the frame and a 3-year warranty for components.

Damage or breakage caused by accidents, collisions, or improper use is not covered under warranty. If repair is required in such cases, the customer will be responsible for repair costs and related shipping fees.

Titanium parts other than the frame are covered by a 3-year warranty.
Carbon fibre parts are covered by a 1-year warranty.

Each Laget titanium frame is engraved with a unique serial number at the bottom bracket area for identification, record keeping, and after-sales service.
