Laget Discovery SLR Titanium Gravel Frameset | Semi 3D-Printed Titanium | 1550g (S) | 700x45c

$2,800.00 SGD

Sale Sold out

Shipping calculated at checkout.

Frame Size S M L XL

LAGET is a German-registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide.

All frames are designed by German designers and crafted in Xi'an, China.

The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium.

Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and corrosion resistance, like an old friend who stays with you all the time.

TSB made history as the world's first company to bring titanium 3D printing to civilian bicycle frames, debuting the technology at both Taipei Cycle Show and Eurobike in 2023.

1. Frame

Semi 3D-printed combined with precision CNC machining, presents this beautiful frame equipped with multi-functional holes.

2. Head Tube

Integrated streamlined head tube moulding enhances the handling and aerodynamics.

3. Seat Tube

Precise optimisation of the seat tube geometry ensures riding efficiency and lasting comfort.

4. Dropouts

Equipped with Universal Derailleur Hanger (UDH) system, which allows for flexible and easy-to-source derailleur hangers.

5. Bottom Bracket

T47 bottom bracket is robust, durable, easy to maintan and compatible with a variety of components.

6. Chainstay

Titanium alloy material combined with the semi-printed structure provides stable and durable shock absorption.

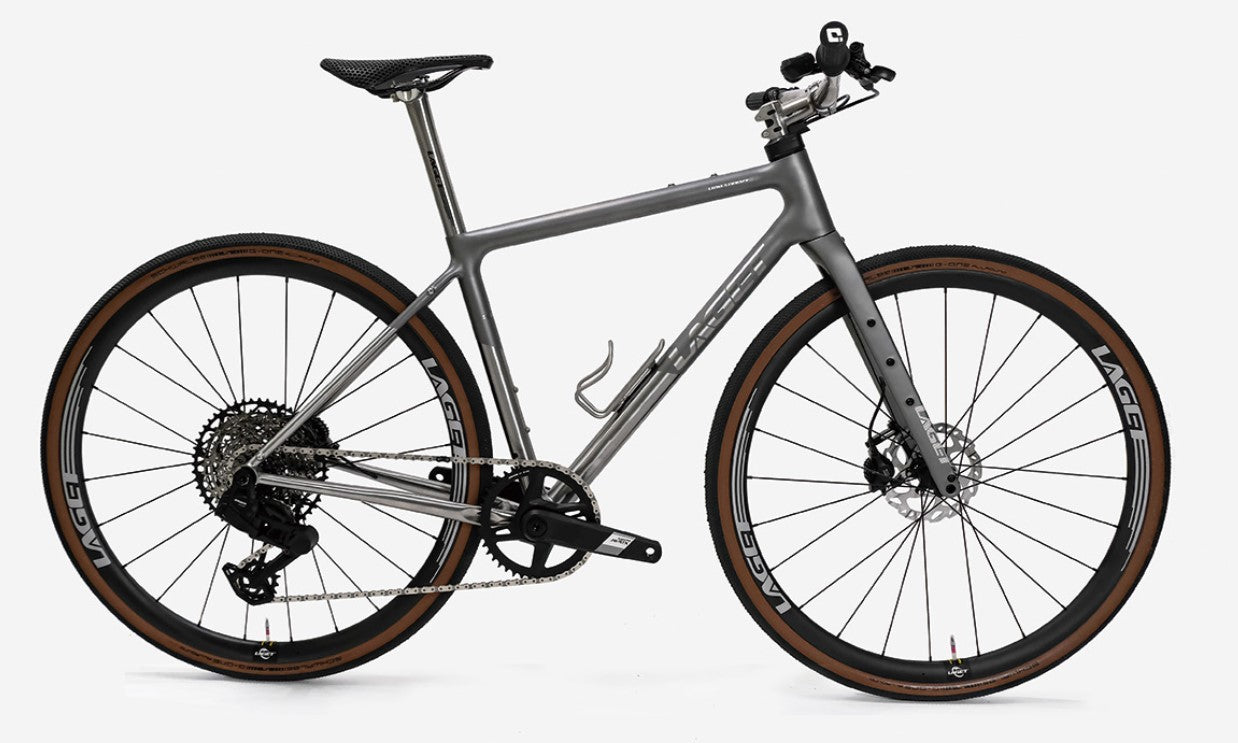

Sample Bike Build

Frameset Specifications

Material: Semi-3D-Printed Titanium
Sizes: S, M, L XL
Weight: 1,550g (Size S)
Surface: Sandblasted, Brushed, Colour-Matched Surface - Brushed Logo
Gear Compatibility: Mechanical/Electronic Shifting
Maximum Tyre Capacity: 700x45c
Headset: 52/52mm Internal Embedded Bearings
Front Fork Material: Carbon Fibre
Seatpost Diameter: 31.6mm
Bottom Bracket: T47x85.5mm
Thru Axle: 100x12mm (Front)/142x12mm (Rear)
Thru-Axle Spec: Front: 128mm P1.5 | Rear: 172mm P1.0
Dropout: Universal Derailleur Hanger

What's Included

Bicycle Frame
Carbon Fork or Titanium Fork, depending on model
FSA 52mm headset bearing with 2.5cm black spacer
Front and Rear thru-axles (Aluminium Alloy)
Universal Rear Derailleur Hanger (Aluminium Alloy)

Shipping

✔ Complimentary standard worldwide shipping
✔ Framesets are shipped separately from other items.
✔ Optional express upgrade available at checkout

What's Included

Bicycle Frame
Carbon Fork
FSA 52mm headset bearing with 2.5cm black spacer
Front and Rear thru-axles (Aluminium Alloy)
Universal Rear Derailleur Hanger (Aluminium Alloy)

Geometry

Size Selection based on Rider Height

Height (CM)	155-165	165-175	170-180	178-187
Frame Size	S	M	L	XL

Please note the size recommendations above are for reference only and apply to most common situations, but not every person's unique morphology.

Dimension	S	M	L	XL
A: Seat Tube Length	440	470	500	520
B: Seat Tube Angle	74°	73.5°	72.5°	72.5°
C: Head Tube Length	125	140	155	170
D: Head Tube Angle	69°	70.5°	71.5°	72°
E: Effective Top Tube Length	517	540	565	581.6
F: BB Drop	72	72	72	72
G: Chainstay Length	430	430	430	420
H: Front Fork Offset	50	50	50	50
I: Front Fork Length	395	395	395	395
J: Wheelbase	1019.6	1023.4	1029.4	1040.4
K: Stack Height	540.5	560.6	578.7	594.8
L: Reach	362.3	373.7	383.3	394
Standover Height	760	780	805	820
Fork Trail	78	70	63	60

Dimensions in mm unless otherwise stated.

Links

Explore other frames from Laget, such as the Pioneer One, Pioneer or other Gravel Framesets Here

Warranty

Laget provides a lifetime warranty for the frame and a 3-year warranty for components.

Damage or breakage caused by accidents, collisions, or improper use is not covered under warranty. If repair is required in such cases, the customer will be responsible for repair costs and related shipping fees.

Titanium parts other than the frame are covered by a 3-year warranty.
Carbon fibre parts are covered by a 1-year warranty.

Each Laget titanium frame is engraved with a unique serial number at the bottom bracket area for identification, record keeping, and after-sales service.
