Laget

Laget Pioneer One Titanium Road Frameset | 3D-Printed Titanium | 1350g (S) | 700x32c

$4,100.00 SGD

Sale Sold out

Shipping calculated at checkout.

Colour Brushed Silver Matte Grey

Frame Size XS S M L XL

LAGET is a German-registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide.

All frames are designed by German designers and crafted in Xi'an, China.

The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium.

Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and corrosion resistance, like an old friend who stays with you all the time.

TSB made history as the world's first company to bring titanium 3D printing to civilian bicycle frames, debuting the technology at both Taipei Cycle Show and Eurobike in 2023.

1. Frame

Fully 3D-Printed Titanium, allowing Laget to combine strength and a lightweight design.

The Pioneer One is an all-rounder road bike that is designed for any challenge.

2. Head Tube

One-piece streamlined head tube for a simple and neat appearance as compared to traditional round head tubes.

3. Seat Tube

Precise optimisation of the seat tube geometry ensures riding efficiency and lasting comfort.

4. Dropouts

Equipped with Universal Derailleur Hanger (UDH) system, which allows for flexible and easy-to-source derailleur hangers.

Compatible with a wide range of groupsets, both mechanical and electronic.

5. Bottom Bracket

3D Printed T47 bottom bracket standard boasts high rigidity, stable operation and high efficiency.

6. Chainstay

High-strength titanium combined with a 3D-printed structure provides superior cushioning and durability.

Sample Bike Builds

Laget Pioneer One with Brushed Silver Finish

Laget Pioneer One with Matte Grey Finish

Frameset Specifications

Material: 3D-Printed Titanium
Sizes: XS, S, M, L, XL
Weight: 1,350g (Size S)
Surface: Brushed Silver Finish - Sandblasted Logo
Gear Compatibility: Mechanical/Electronic Shifting
Maximum Tyre Capacity: 700x32c
Headset: 52/52mm Internal Embedded Bearings
Front Fork Material: Carbon Fiber
Seat Post Diameter: 27.2mm
Bottom Bracket: T47x68mm
Thru Axle: 100x12mm (Front)/142x12mm (Rear)
Thru-Axle Spec: Front: 123mm P1.5 | Rear: 172mm P1.0
Dropout: Universal Derailleur Hanger

What's Included

Bicycle Frame
Carbon Fork
FSA 52mm headset bearing with 2.5cm black spacer
Front and Rear thru-axles (Aluminium Alloy)
Universal Rear Derailleur Hanger (Aluminium Alloy)

Shipping

✔ Complimentary standard worldwide shipping
✔ Framesets are shipped separately from other items.
✔ Optional express upgrade available at checkout

Geometry

Size Selection based on Rider Height

Height (CM)	155-165	165-172	170-177	175-182	180-187
Frame Size	XS	S	M	L	XL

Please note the size recommendations above are for reference only and apply to most common situations, but not every person's unique morphology.

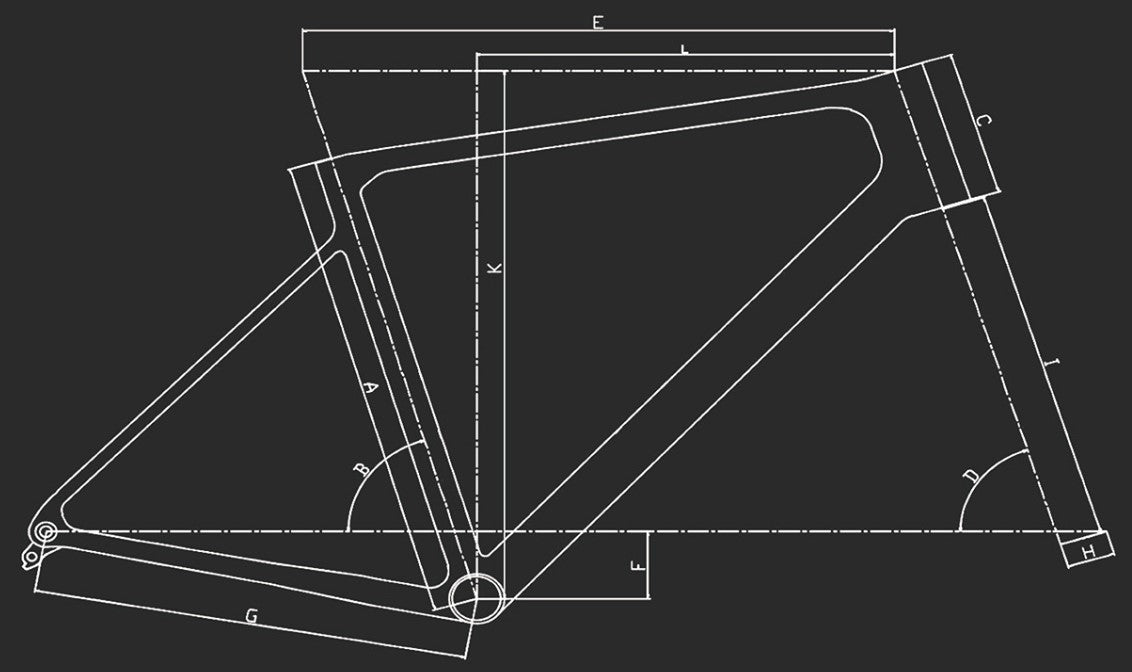

Dimension	XS	S	M	L	XL
A: Seat Tube Length	420	440	460	480	500
B: Seat Tube Angle	74°	74°	73.5°	73.5°	73°
C: Head Tube Length	120	130	140	150	160
D: Head Tube Angle	71.5°	72°	72°	72.5°	72.5°
E: Effective Top Tube Length	520	530	540	555	570
F: BB Drop	70	70	70	70	70
G: Chainstay Length	410	410	410	410	410
H: Front Fork Offset	45	45	45	45	45
I: Front Fork Length	368	368	368	368	368
J: Wheelbase	972.9	978.8	984.1	994.6	1004.5
K: Stack Height	519.9	531.1	540.7	551.9	561.5
L: Reach	370.9	377.7	379.5	391.5	398.3
Standover Height	720	745	758	774	788
Fork Trail	64.6	61.7	61.7	58.7	58.7

Dimensions in mm unless otherwise stated.

Links

Explore other frames from Laget, such as the Pioneer One, Aero One or Gravel Framesets Here

Warranty

Laget provides a lifetime warranty for the frame and a 3-year warranty for components.

Damage or breakage caused by accidents, collisions, or improper use is not covered under warranty. If repair is required in such cases, the customer will be responsible for repair costs and related shipping fees.

Titanium parts other than the frame are covered by a 3-year warranty.
Carbon fibre parts are covered by a 1-year warranty.

Each Laget titanium frame is engraved with a unique serial number at the bottom bracket area for identification, record keeping, and after-sales service.
