Laget Pioneer SLR Titanium Road Frameset | Semi 3D-Printed Titanium | 1500g (M) | 700x32c

$2,915.00 SGD

Sale Sold out

Shipping calculated at checkout.

Exclusive Bundle Promotion: Buy any Laget Frame, Unlock the Laget C45 Carbon Wheelset with Titanium Spokes for USD 899 only (Original MSRP: USD 1,099 – Save USD 200!)

Frame Size XS S M L XL (Pre-Order)

Bundle Frame Only + Laget C45 Wheelset (SAVE U$200!) Shimano HG + Laget C45 Wheelset (SAVE U$200!) SRAM XDR

Unable to ship to Korea/Taiwan/China. Please contact your nearest Laget dealer.

About Laget

LAGET is a German-registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide.

All frames are designed by German designers and crafted in Xi'an, China.

The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium.

Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and corrosion resistance, like an old friend who stays with you all the time.

TSB made history as the world's first company to bring titanium 3D printing to civilian bicycle frames, debuting the technology at both Taipei Cycle Show and Eurobike in 2023.

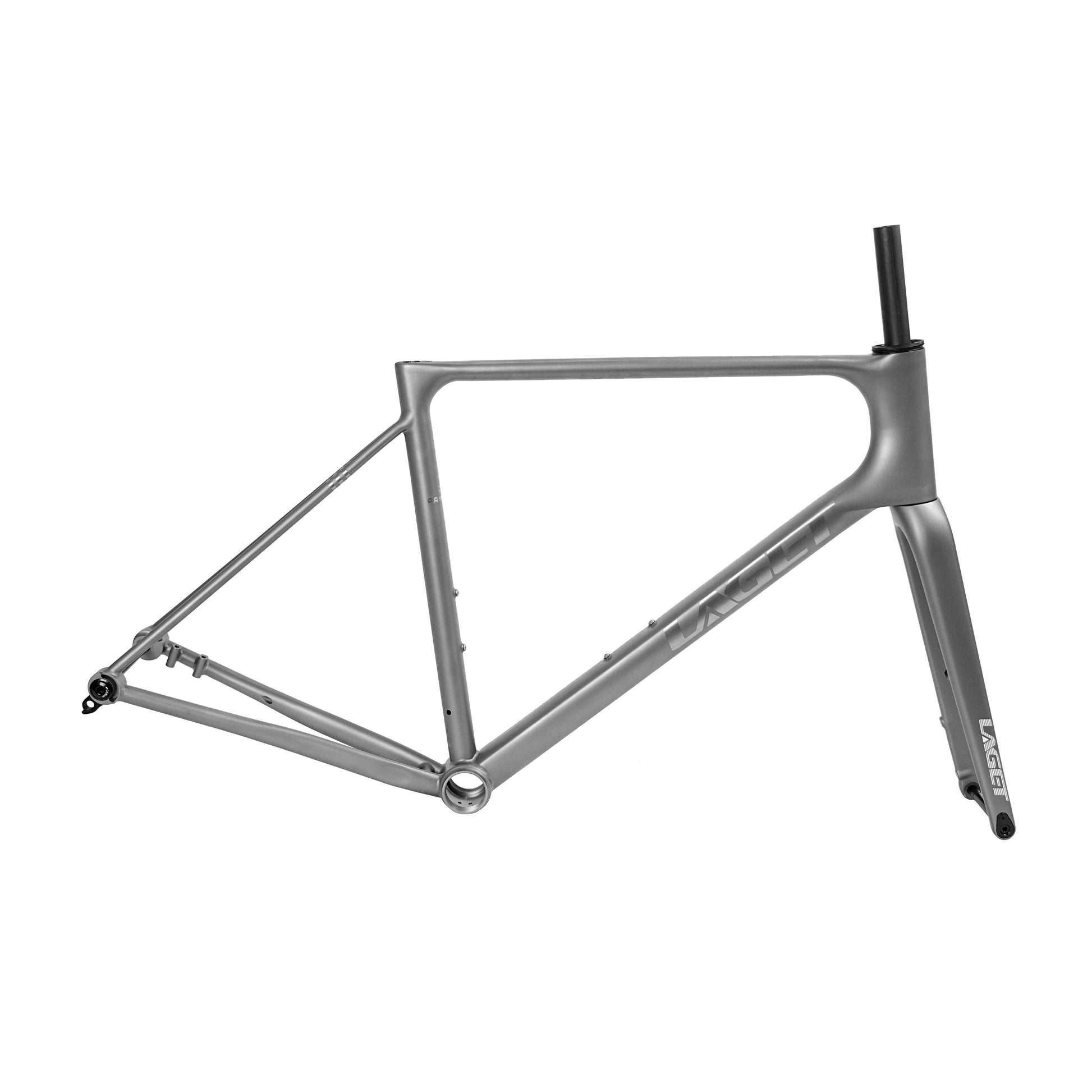

1. Frame

Semi 3D-Printed Titanium combined with CNC precision machining structure is equipped with multi-functional hole fittings.

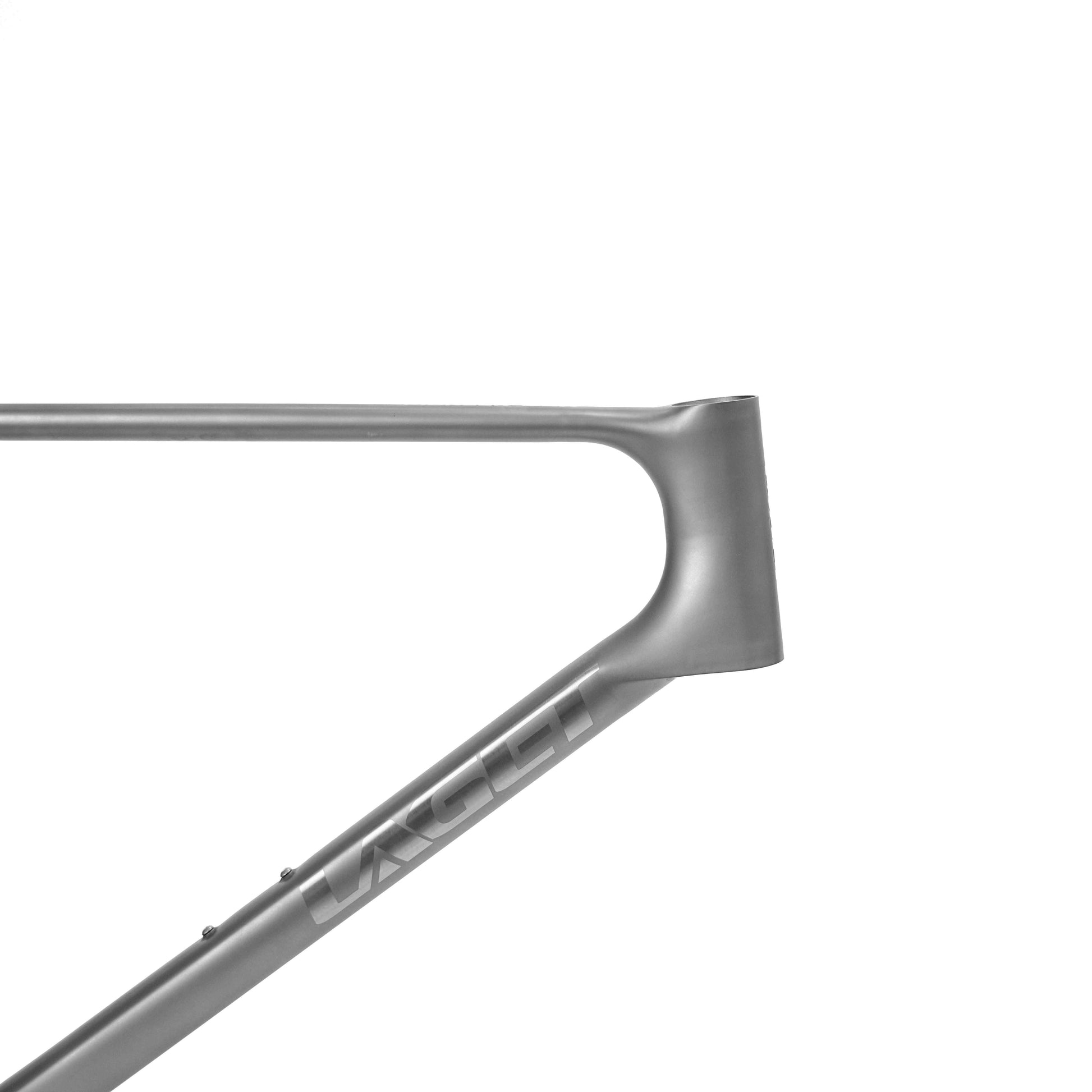

2. Head Tube

One-piece streamlined head tube for a simple and neat appearance as compared to traditional round head tubes.

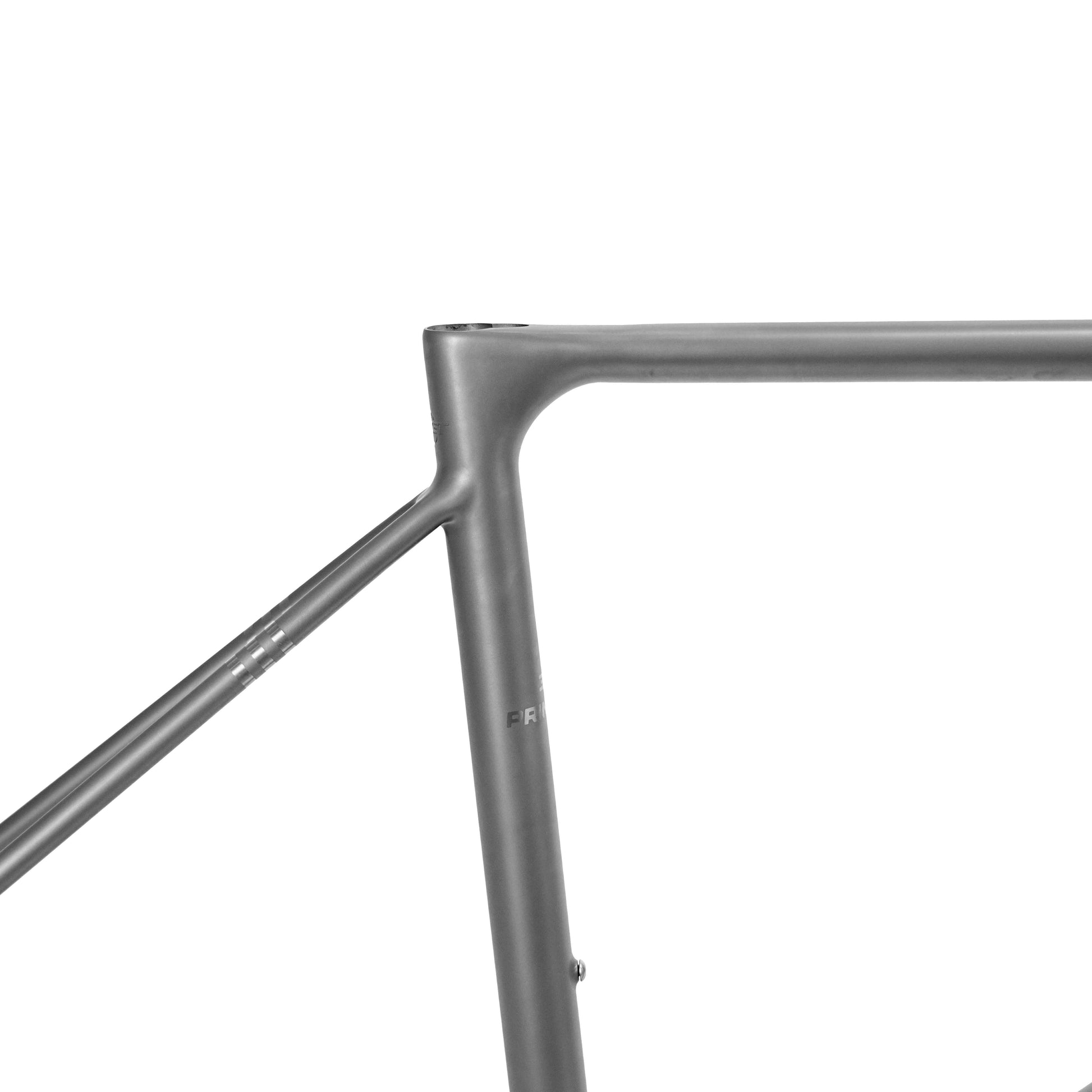

3. Seat Tube

Precise optimisation of the seat tube geometry ensures riding efficiency and lasting comfort.

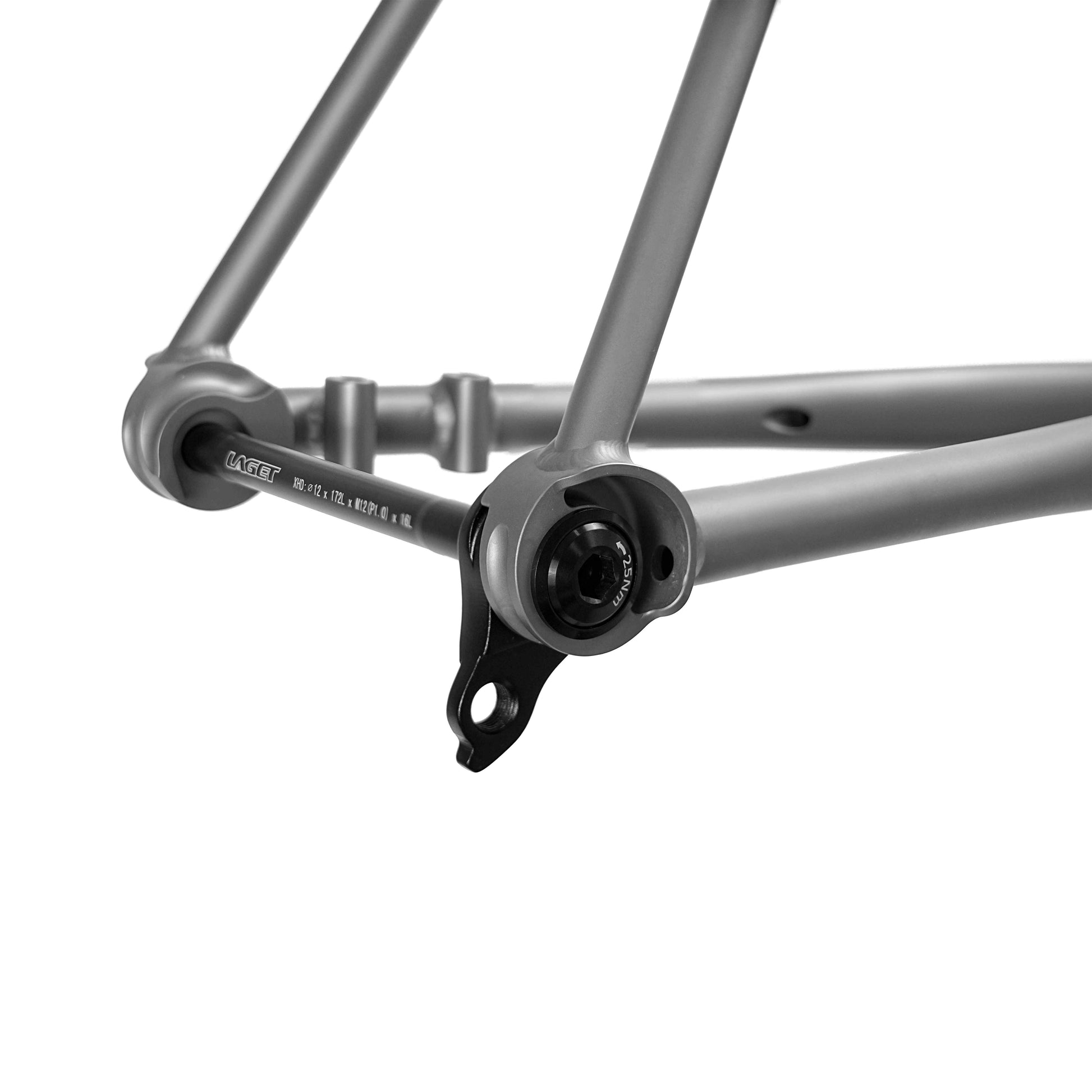

4. Dropouts

Equipped with Universal Derailleur Hanger (UDH) system, which allows for flexible and easy-to-source derailleur hangers.

Compatible with a wide range of groupsets, both mechanical and electronic.

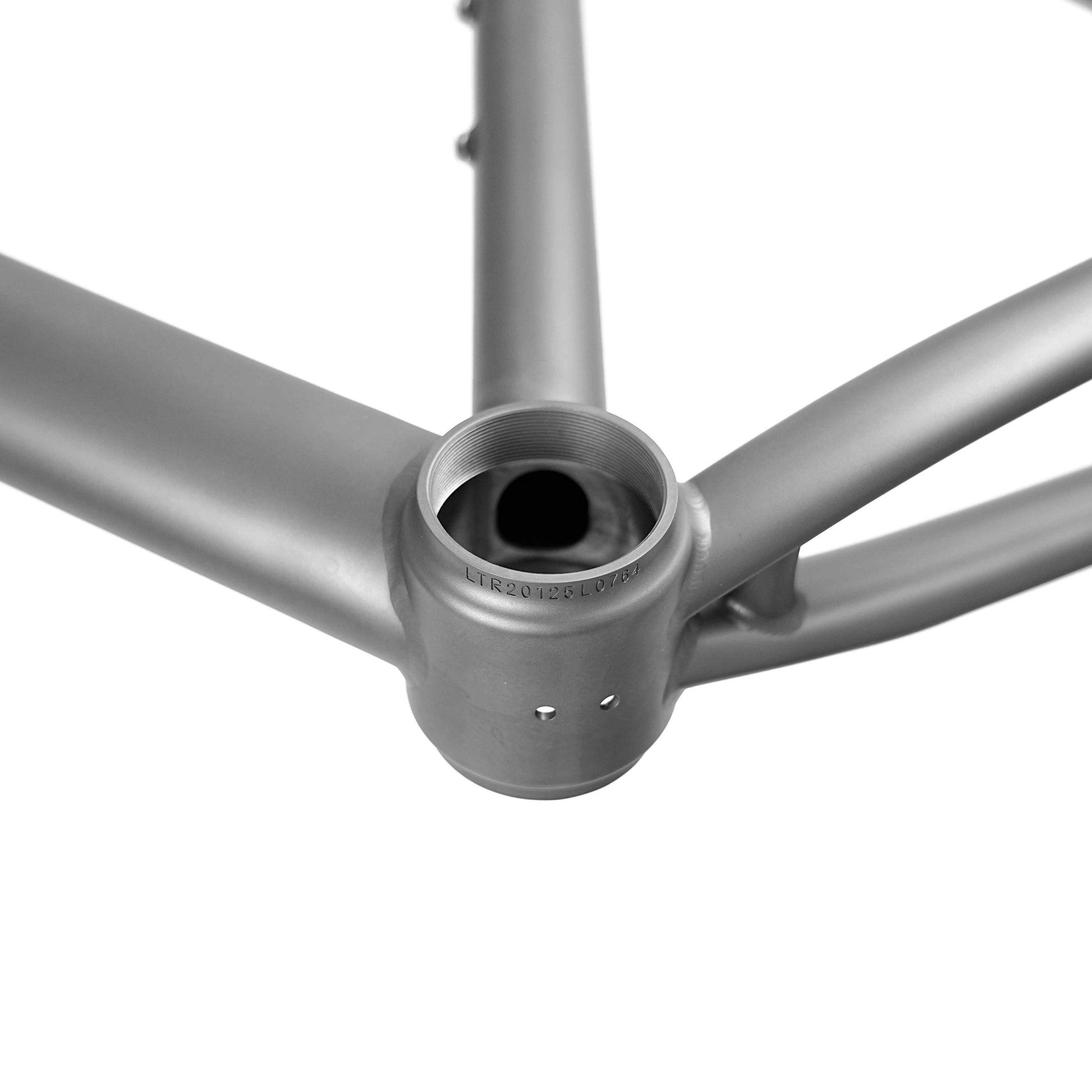

5. Bottom Bracket

T47 bottom bracket standard boasts high rigidity, stable operation and high efficiency. Easy to maintain and compatible with a variety of components.

6. Chainstay

Titanium alloy combined with a semi-3D-printed structure provides superior cushioning and durability.

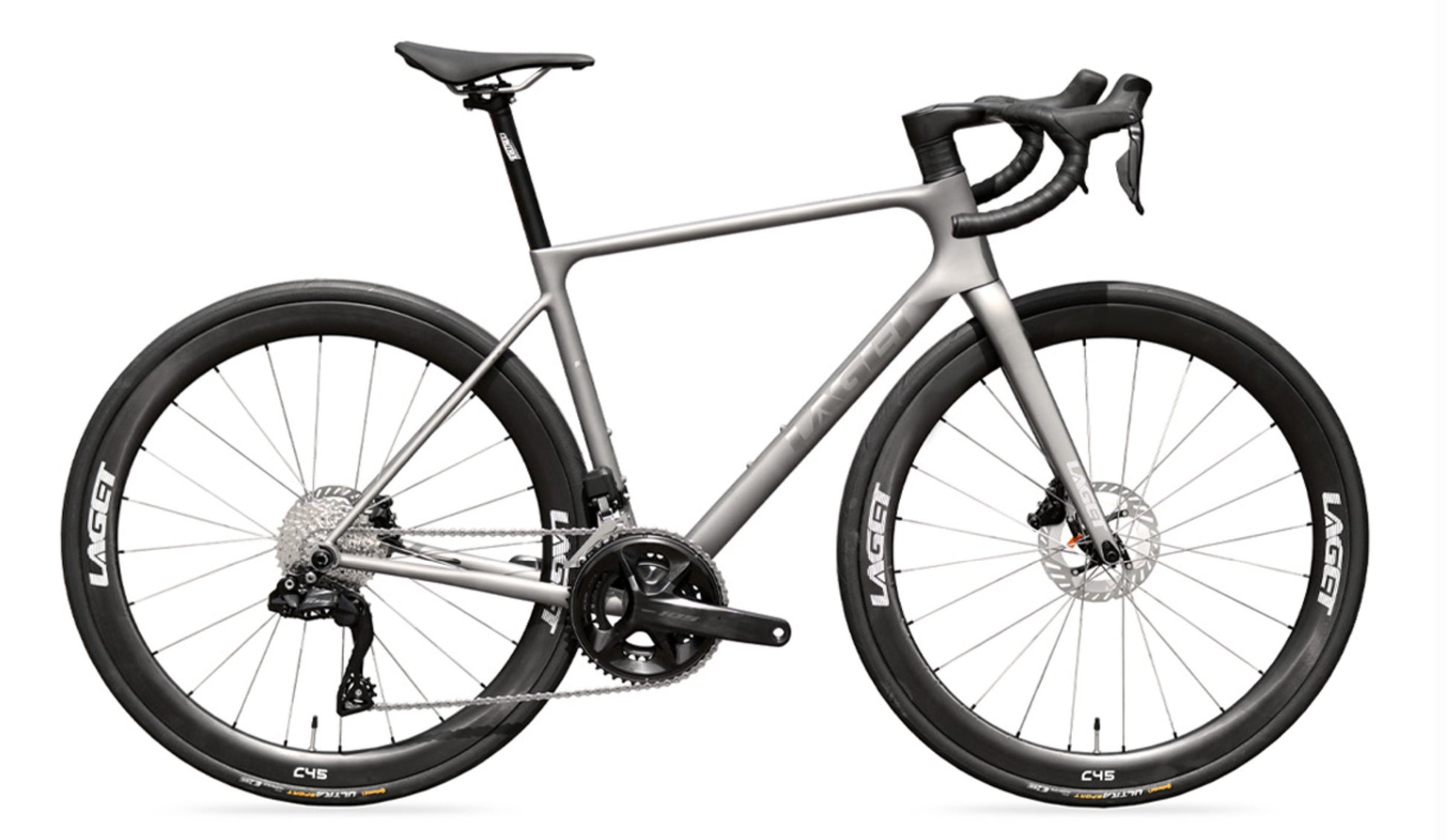

Sample Bike Build

Frameset Specifications

Material: Semi-3D-Printed Titanium
Sizes: XS, S, M, L, XL
Weight: 1,500g (Size M)
Surface: Sandblasted Finish, Brushed Logo
Gear Compatibility: Mechanical/Electronic Shifting
Maximum Tyre Capacity: 700x32c
Headset: 52/52mm Internal Embedded Bearings
Front Fork Material: Carbon Fiber
Seat Post Diameter: 27.2mm
Bottom Bracket: T47x68mm
Thru Axle: 100x12mm (Front)/142x12mm (Rear)
Dropout: Universal Derailleur Hanger

What's Included

Bicycle Frame
Carbon Fork
FSA 52mm headset bearing with 2.5cm black spacer
Front and Rear thru-axles (Aluminium Alloy)
Universal Rear Derailleur Hanger (Aluminium Alloy)

Geometry

Size Selection based on Rider Height

Height (CM)	155-165	165-172	170-177	175-182	180-187
Frame Size	XS	S	M	L	XL

Please note the size recommendations above are for reference only and apply to most common situations, but not every person's unique morphology.

Dimension	XS	S	M	L	XL
A: Seat Tube Length	410	440	470	485	510
B: Seat Tube Angle	75°	74.6°	73.9°	73.5°	73.2°
C: Head Tube Length	124	132	143	165	182
D: Head Tube Angle	70.5°	71.1°	71.9°	72.8°	73.5°
E: Effective Top Tube Length	496.3	513.5	532.1	550.6	568.7
F: BB Drop	72	74	70	70	68
G: Chainstay Length	410	410	410	410	412
H: Front Fork Offset	45	45	45	45	45
I: Front Fork Length	368	368	368	368	368
J: Wheelbase	967	974.7	981.3	987.6	998.5
K: Stack Height	522.2	533.9	543.2	567.3	584
L: Reach	356.3	366.4	375.3	382/6	392.4
Standover Height	728.3	745.5	767.2	786.6	808.7
Fork Trail	73	69.2	64.1	58.5	54.1

Dimensions in mm unless otherwise stated.

Comparing the Pioneer Series

Measurement	Laget Pioneer SLR (M)	Laget Pioneer One (M)	Laget Pioneer (M)
Stack	543.2	540.7	540.7
Reach	375.3	379.5	379.5
Stack / Reach Ratio	1.448	1.424	1.424
Head Tube Angle	71.9°	72°	72°
Seat Tube Angle	73.9°	73.5°	73.5°
Head Tube Length	143	140	140
Chainstay Length	410	410	410
BB Drop	70	70	70
Wheelbase	981.3	984.1	984.1
Geometry Class	All-Rounder / Sportive Road	Race / Performance	Race / Performance

All size M comparisons. Dimensions in mm unless stated.

Comparing the Pioneer series, we see that they are all very comparable, with the Pioneer SLR being just a tad bit more relaxed in terms of stack-to-reach ratio. However, the marginally shorter wheelbase gives it an edge in responsiveness through the corners.

Links

Explore other frames from Laget, such as the Pioneer One, Aero One or Gravel Framesets Here

Ti-Parts is Laget's Official International Dealer and Singapore Distributor.

Shipping

✔ Complimentary standard worldwide shipping by sea - Please allow approximately 50 days ETA
✔ Optional Air Shipping available at a top-up.
✔ Framesets are shipped separately from other items.

Sea Shipping Notes

Most location includes full door-to-door delivery, however, a small number of locations have restrictions on standard sea freight due to customs rules, port infrastructure, or security conditions in certain regions. Where this applies to your order:

Sea freight may only be able to reach the nearest port rather than your door (this currently applies to Brazil, for example).
Air freight is available as an alternative but requires an additional cost due to weight and volume.
Some remote or high-risk overland routes require armed escort transport for safe delivery, which significantly increases the shipping cost.

If your delivery address falls into one of these categories, we will contact you by email after you place your order with the estimated extra shipping cost. You can then decide whether to proceed at the adjusted cost or cancel for a full refund.

Warranty

Laget provides a lifetime warranty for the frame, 3-year warranty for Titanium components and 1-year warranty for Carbon components.

Damage or breakage caused by accidents, collisions, or improper use is not covered under warranty. If repair is required in such cases, the customer will be responsible for repair costs and related shipping fees.

Titanium parts other than the frame are covered by a 3-year warranty.
Carbon fibre parts are covered by a 1-year warranty.

Each Laget titanium frame is engraved with a unique serial number at the bottom bracket area for identification, record keeping, and after-sales service.

Removal of Laget's logo will not void the warranty. However, it is not possible to purchase the frame without Laget's logo at this time.
