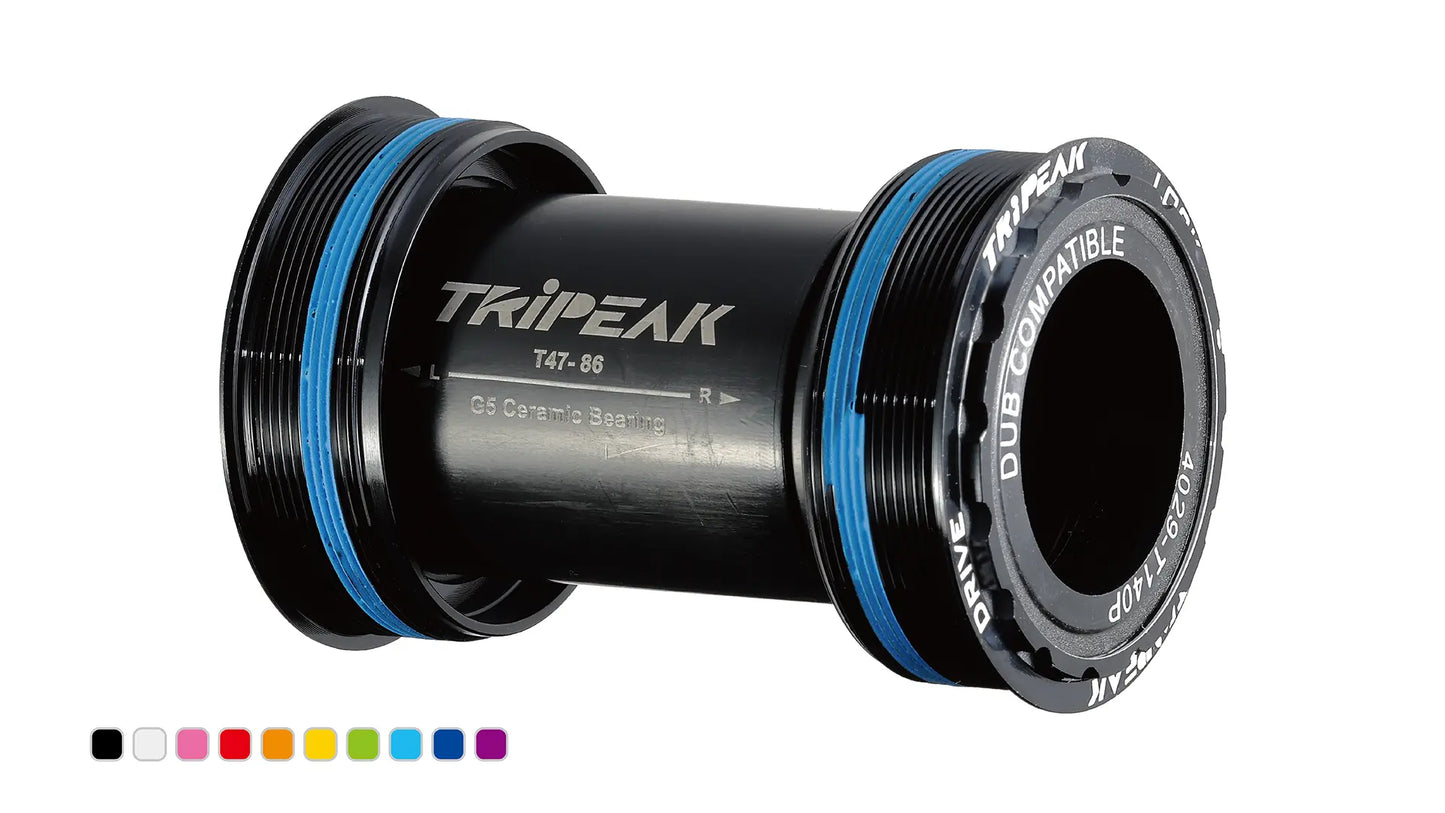

TRiPEAK T47 68/86mm 3-in-1 Bottom Bracket | Ceramic/Steel Bearings | Shimano Hollowtech II, SRAM DUB, Rotor 3D+
TRiPEAK T47 68/86mm 3-in-1 Bottom Bracket | Ceramic/Steel Bearings | Shimano Hollowtech II, SRAM DUB, Rotor 3D+
Učitavanje dostupnosti preuzimanje nije moguće
3-in-1 Core System (Hollowtech II/DUB/3D+)
G5 Ceramic Bearing / P05 Steel Bearing
ZeroCreak Eliminate Noise Disturbances
Patented Twist-Fit Design
The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel races, delivering excellent rotational performance for riders.
The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race.
Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.

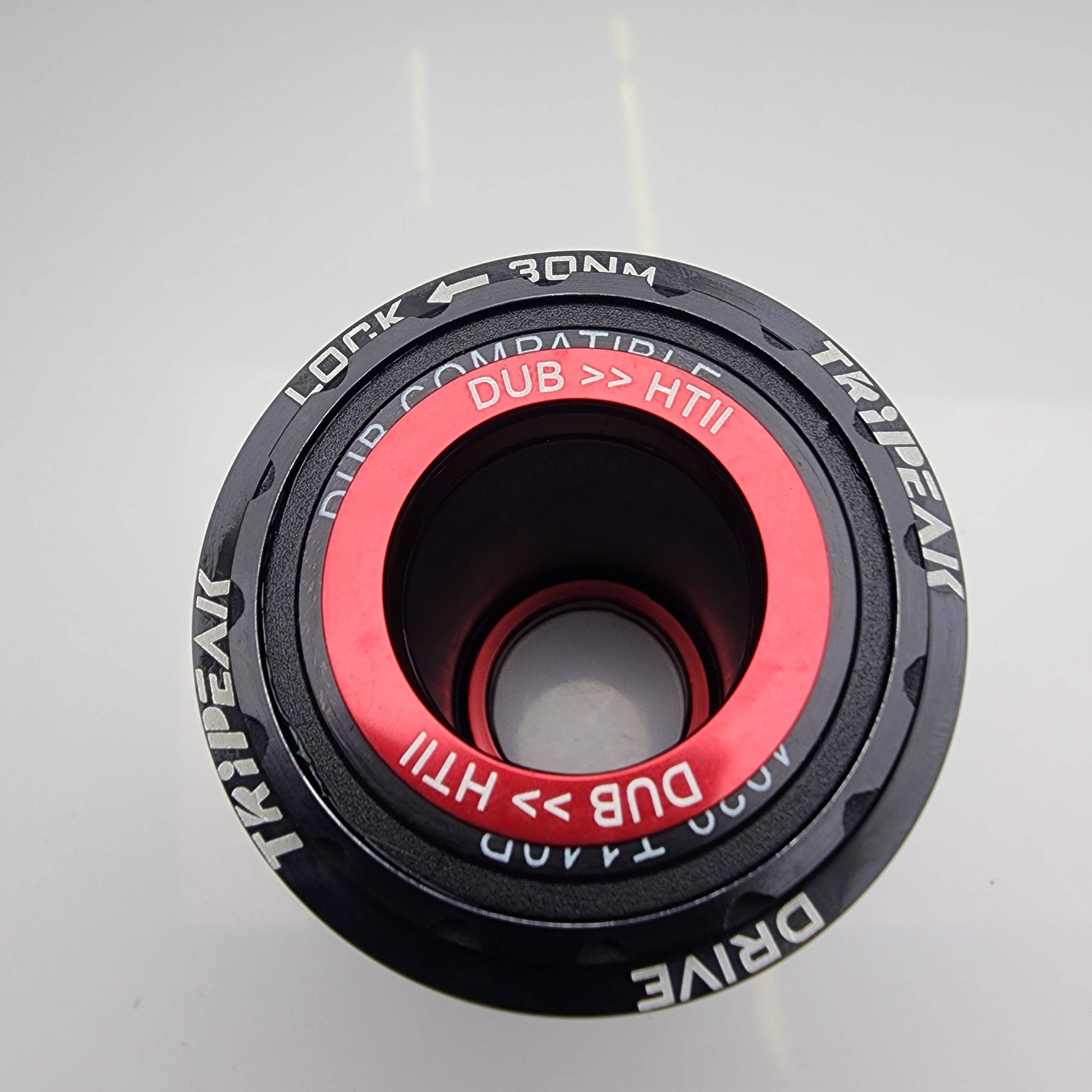

The 3-in-1 Core System BB set can accommodate three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

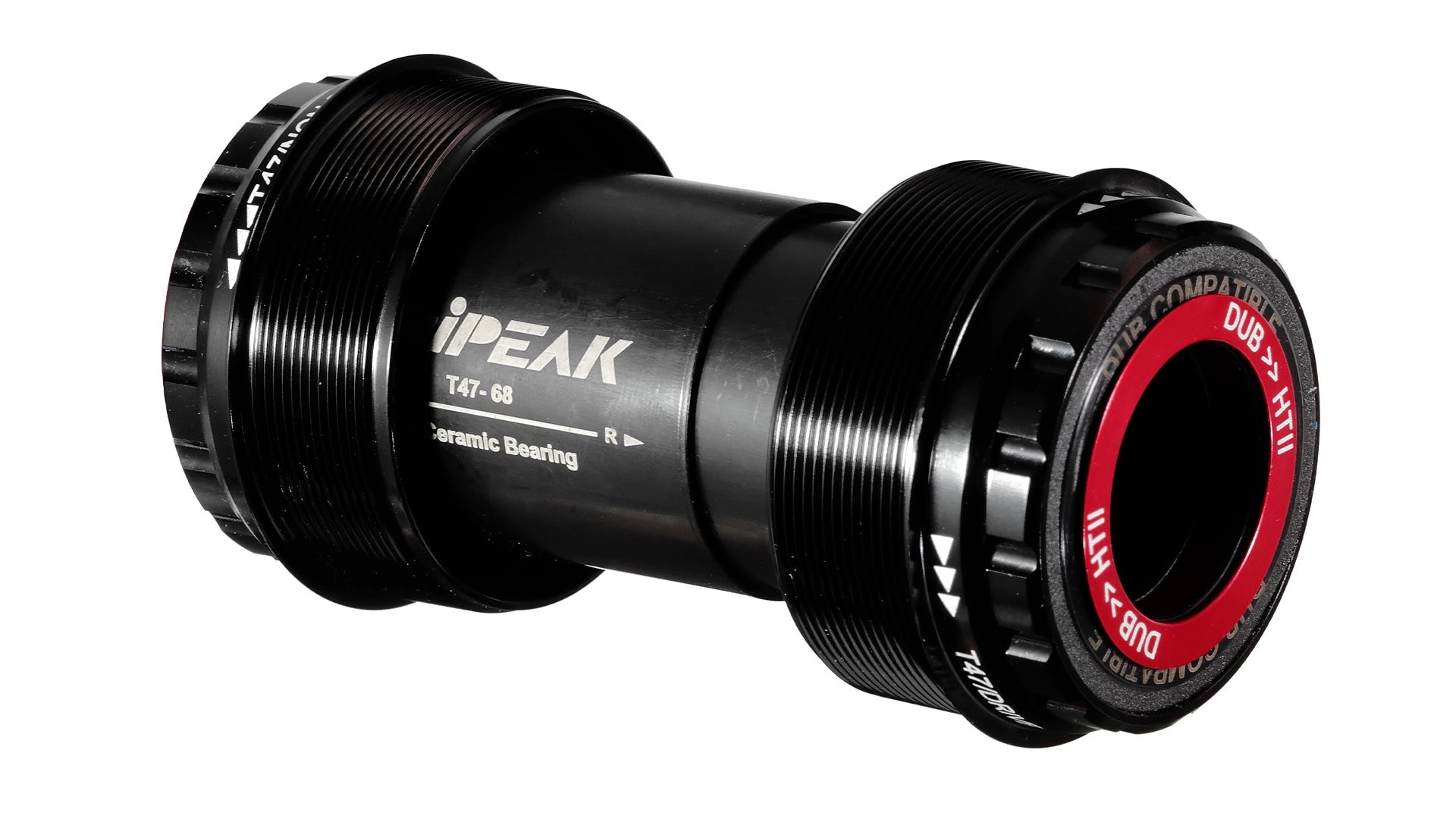

| T47 68mm (Road): 3-in-1 | |
| Type | Road Bike |

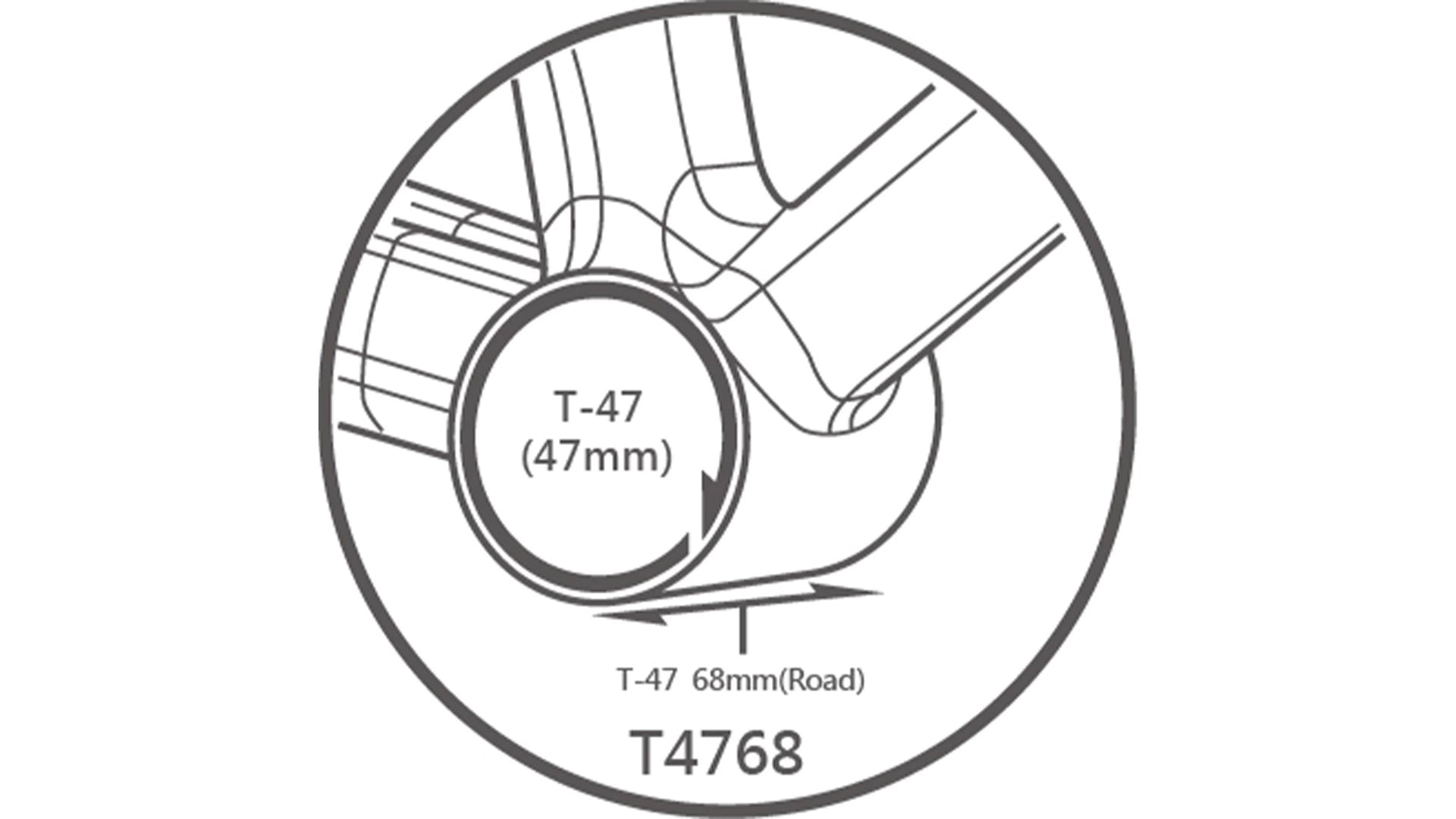

| Frame Spec | T47 DIA.47mm x Width 68mm |
| Crank Spec | SHIMANO HTII (dia.24mm) SRAM DUB (dia.28.99mm) ROTOR 3D+ (dia.30mm) |
| Bearing | G5 Ceramic Bearing P05 Steel Bearing |
| Tool Notch | Notch: 16T O.D.: 44mm |
| Material | Cup: Alloy 6061 Sleeve: PA+GF composite material |
| Accessories | 30mm Cap*2 28.99mm Cap*2 28.99mm Spacer*1 (Drive Side) 24mm Cap*2 |
| Color | Black |

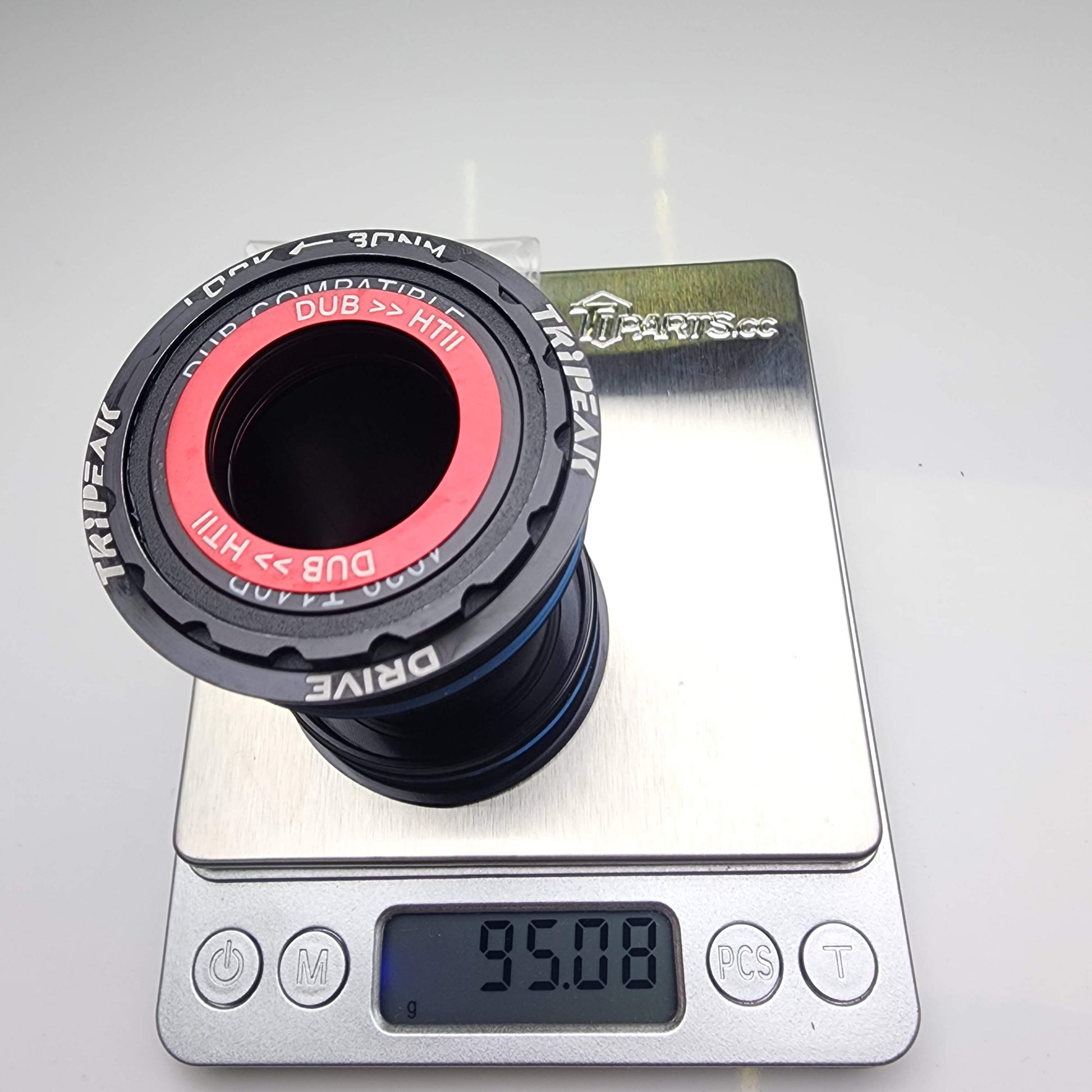

| Weight | G5: 84g/set (w/o cap) P05: 91g/set (w/o cap) |

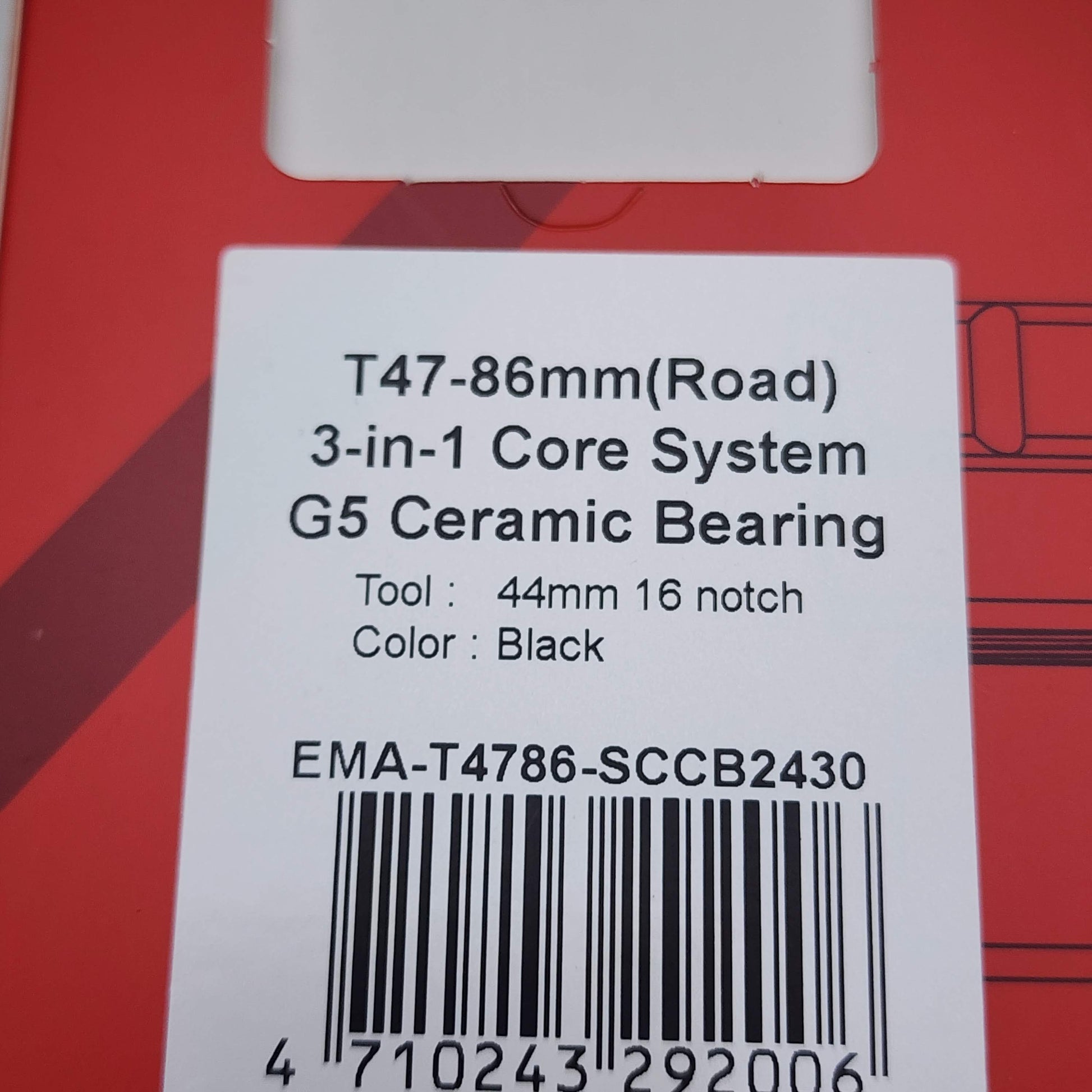

| T47 86mm (Road): 3-in-1 | |
| Type | Road Bike |

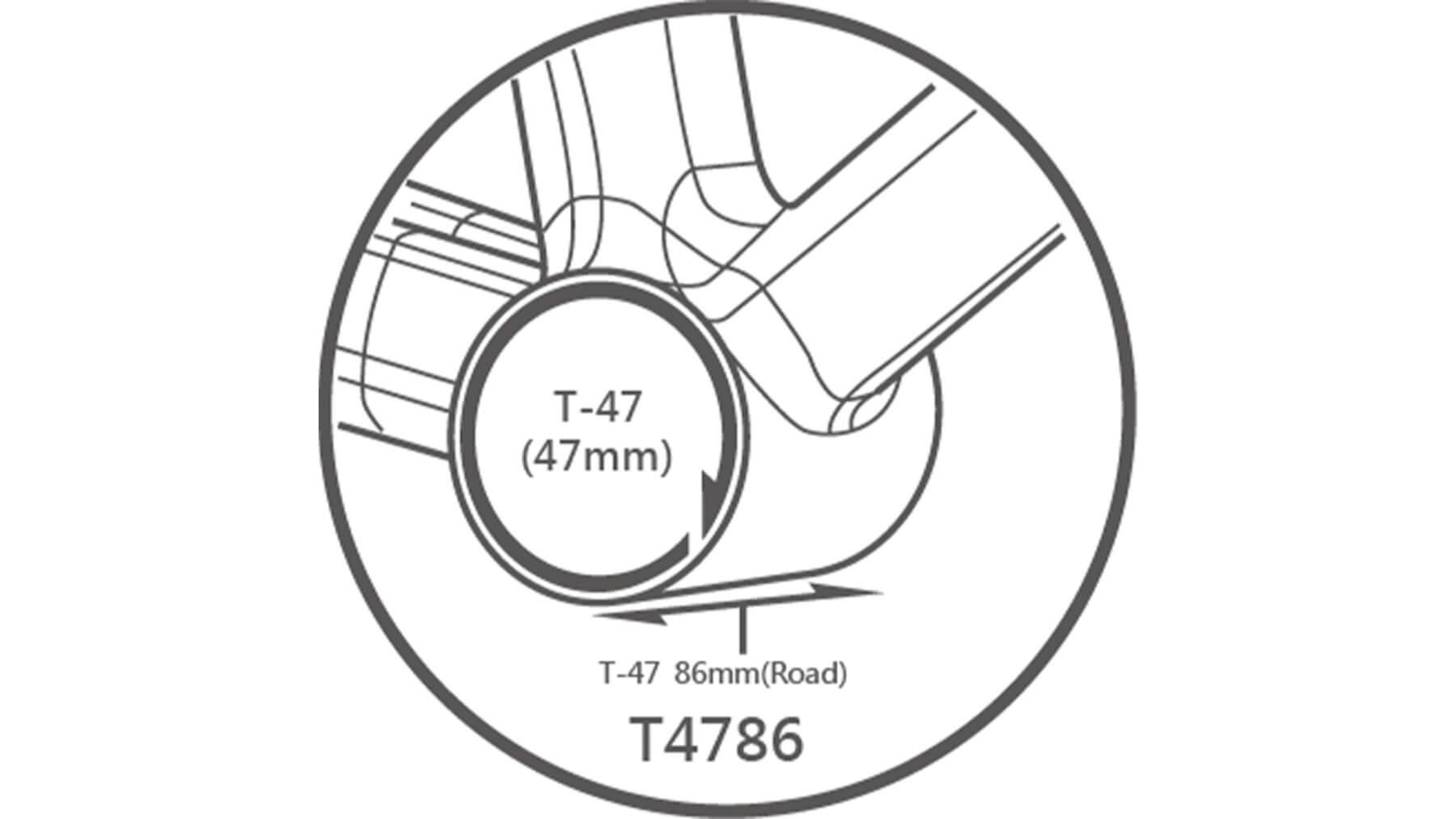

| Frame Spec | T47 DIA.47mm x Width 86mm |
| Crank Spec | SHIMANO HTII (dia.24mm) SRAM DUB (dia.28.99mm) ROTOR 3D+ (dia.30mm) |
| Bearing | G5 Ceramic Bearing P05 Steel Bearing |
| Tool Notch | Notch: 16T O.D.: 44mm |
| Material | Cup: Alloy 6061 Sleeve : PA+GF composite material |
| Accessories | 30mm Cap*2 28.99mm Cap*2 28.99mm Spacer*1 (Drive Side) 24mm Cap*2 |
| Color | Black |
| Weight | G5: 74g/set (w/o cap) P05: 77g/set (w/o cap) |
Links
View the TRiPEAK Collection Here
View other Bottom Brackets Here
Download T47 68mm PDF Installation Manual
Download T47 86mm PDF Installation Manual
