Overfast

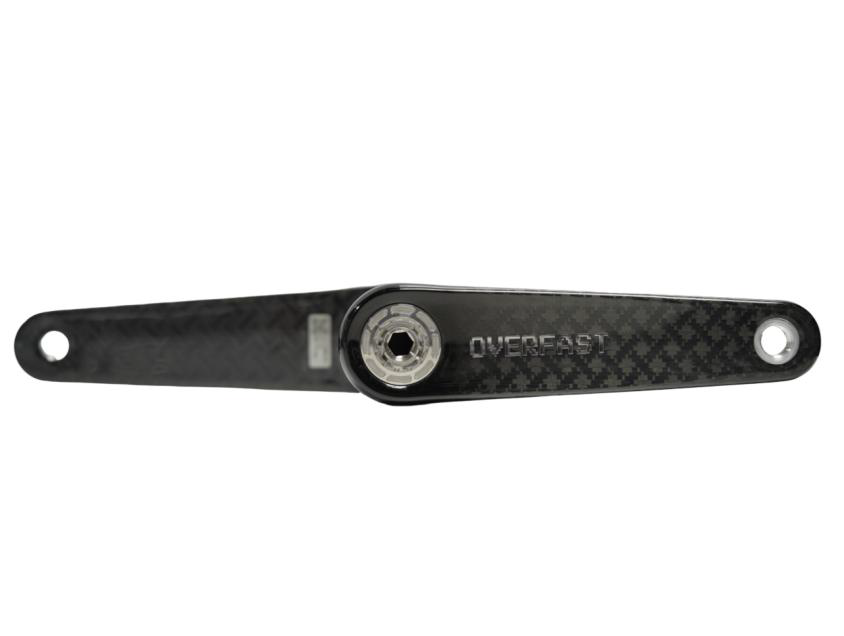

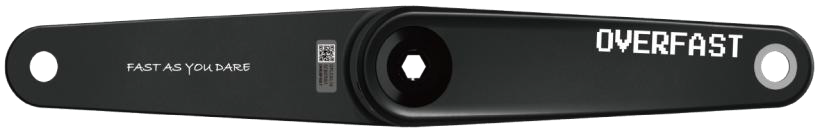

OVERFAST VELA 碳纖維曲柄臂|SRAM DUB/Shimano Ti 24mm 軸心

OVERFAST VELA 碳纖維曲柄臂|SRAM DUB/Shimano Ti 24mm 軸心

定價 $599.00 SGD
定價 售價 $599.00 SGD
特價 售罄
結帳時計算運費
底部支架類型
曲柄臂長度
蜘蛛介面
數量

碳纖維曲柄臂|290g(Ti24)/300g(DUB/Ti24 GR)±15g|相容 EASTON 盤爪介面

44mm 鏈條線|160 至 172.5mm|可選 SRM 相容版本

三種軸心版本:DUB(28.99mm)、Ti24(24mm 公路)、Ti24 GR(Glossy Rolls)


Vela 是 Overfast 推出的碳纖維曲柄臂,共有三種對應不同軸心的版本,可支援 Shimano 24mm 與 SRAM DUB 配置。

三種版本均採用相同的 EASTON 相容盤爪介面及 44mm 鏈條線;每個版本皆提供六種曲柄臂長度,從 160 至 172.5mm,每 2.5mm 一級。

Ti24 重量為 290g,DUB 與 Ti24 GR 版本則為 300g,重量公差皆為 ±15g。

重要提醒:
不支援 SRAM 8 螺栓齒盤/盤爪


版本快速比較

版本 軸心 Q-Factor 重量 適用範圍
Vela Crankarm DUB 28.99mm(SRAM DUB) 148mm 300g ±15g 公路,適用 SRAM DUB 套件
Vela Crankarm Ti24 24mm 151mm 290g ±15g 公路
Vela Crankarm Ti24 GR 24mm 151mm 300g ±15g 公路

特色

相容 EASTON 或 SRM 的盤爪介面

Vela 三種版本皆採用 EASTON 相容盤爪介面,可廣泛搭配市面上採 EASTON 規格的盤爪式齒盤,例如 XCadey 功率計。

亦可加價選購 SRM 版本。SRM 整合於相同的曲柄臂平台,因此選用此版本時,幾何與鏈條線皆維持不變。

六種曲柄臂長度

提供 160mm 至 172.5mm 共六種長度,每 2.5mm 一級,選擇範圍比多數曲柄臂更完整,可更精準地調整騎乘設定,減少不適。

DUB 與 24mm 軸心版本

DUB 版本採用 28.99mm 軸心,可直接搭配 SRAM DUB 中軸。Ti24 與 Ti24 GR 版本採用標準 24mm 軸心,相容多種公路與 Gravel 中軸規格。Ti24 GR 專為 Gravel 用途打造。


規格

材質 碳纖維
版本 DUB/Ti24/Ti24 GR(Glossy Rolls)
軸心直徑 28.99mm(DUB)/24mm(Ti24/Ti24 GR)
Q-Factor 148mm(DUB)/151mm(Ti24/Ti24 GR)
鏈條線 44mm(所有版本)
盤爪介面 相容 EASTON/SRM
重量(DUB) 300g ±15g
重量(Ti24) 290g ±15g
重量(Ti24 GR) 300g ±15g


包裝內容

  • Overfast Vela 碳纖維曲柄臂 1 對

連結

Overfast Aerox 空力碳纖維曲柄臂:請按這裡。

所有 Overfast 產品:請按這裡。

所有曲柄組與曲柄臂:請按這裡。

Warranty Information

Warranty Coverage

All Overfast products are covered by a 2-year warranty against manufacturing defects. This warranty does not cover damage caused by misuse, accidents, crashes, improper installation, modification, or normal wear and tear.

Warranty Claims

To process a warranty claim, customers must provide clear photos and/or videos showing the issue. Once the claim has been reviewed and confirmed by Overfast, replacement parts will be arranged as quickly as possible.

Thru-Axles

For defective thru axles, please provide clear photos or videos of the affected product. Once the defect has been verified, a replacement will be shipped promptly.

Cranksets

If a crank arm suffers a confirmed manufacturing defect (non-user-related), please provide detailed photos and a description of the issue.

After approval:

- The defective crank arm must be permanently destroyed (for example, by drilling a hole through it).
- Evidence of destruction must be submitted.
- If only one crank arm is defective, only the affected side will be replaced.

Once the above requirements are met, the replacement will be arranged immediately.

Wheelsets

Warranty service for wheelsets depends on the specific component that has failed. After inspection, Overfast will provide the appropriate replacement part or component based on the confirmed issue.

Other Products

The same warranty process applies to all other Overfast products. As long as sufficient evidence is provided to verify a manufacturing defect, warranty claims will be prioritised and processed promptly.

----------------------------------

Crash Replacement Programme

For products damaged due to crashes, accidents, or other user-related incidents, Overfast offers a Crash Replacement Programme.

Eligible customers may purchase a replacement product at 30% off the recommended retail price (70% of MSRP).

----------------------------------

Notes

- All warranty claims are subject to inspection and approval by Overfast.
- Clear photos, videos, and any other requested documentation may be required before a claim can be approved.
- Overfast reserves the right to determine whether a claim qualifies under the warranty or the Crash Replacement Programme.

Returns & Refund Information

我們希望您對購買的產品完全滿意。但請注意,我們僅接受因產品品質問題(例如裂縫或結構性破損)而導致的退貨和退款。

吱吱作響或噪音等問題通常是安裝不當造成的,不屬於產品缺陷

不符合退貨或退款條件

以下情況接受退貨:

  • 安裝或使用不當
  • 正常磨損、表面痕跡或外觀瑕疵
  • 因誤用、過度扭轉或意外事故造成的損壞
  • 對產品的任何修改或變更
  • 產品有使用痕跡(包括夾緊痕跡或安裝痕跡)

因訂購型號錯誤而退貨

如果您訂購了錯誤的型號:

  • 您需承擔所有退貨運費。
  • 收到您的退貨後,我們將退還您購買金額,但需扣除以下費用:
    • a) 支付網關手續費為 7%(這是我們的信用卡公司向我們收取的費用)
    • b) 即使您享受了“免運費”,也需要支付運費,因為我們會自行補貼運費。

補充說明

  • 退回的商品必須未使用過,保持原狀,並包含所有包裝
  • 凡有安裝或使用痕跡的產品均不符合退貨條件。
  • 如果需要重新出貨,重新出貨的費用將由買家承擔
查看完整資訊
